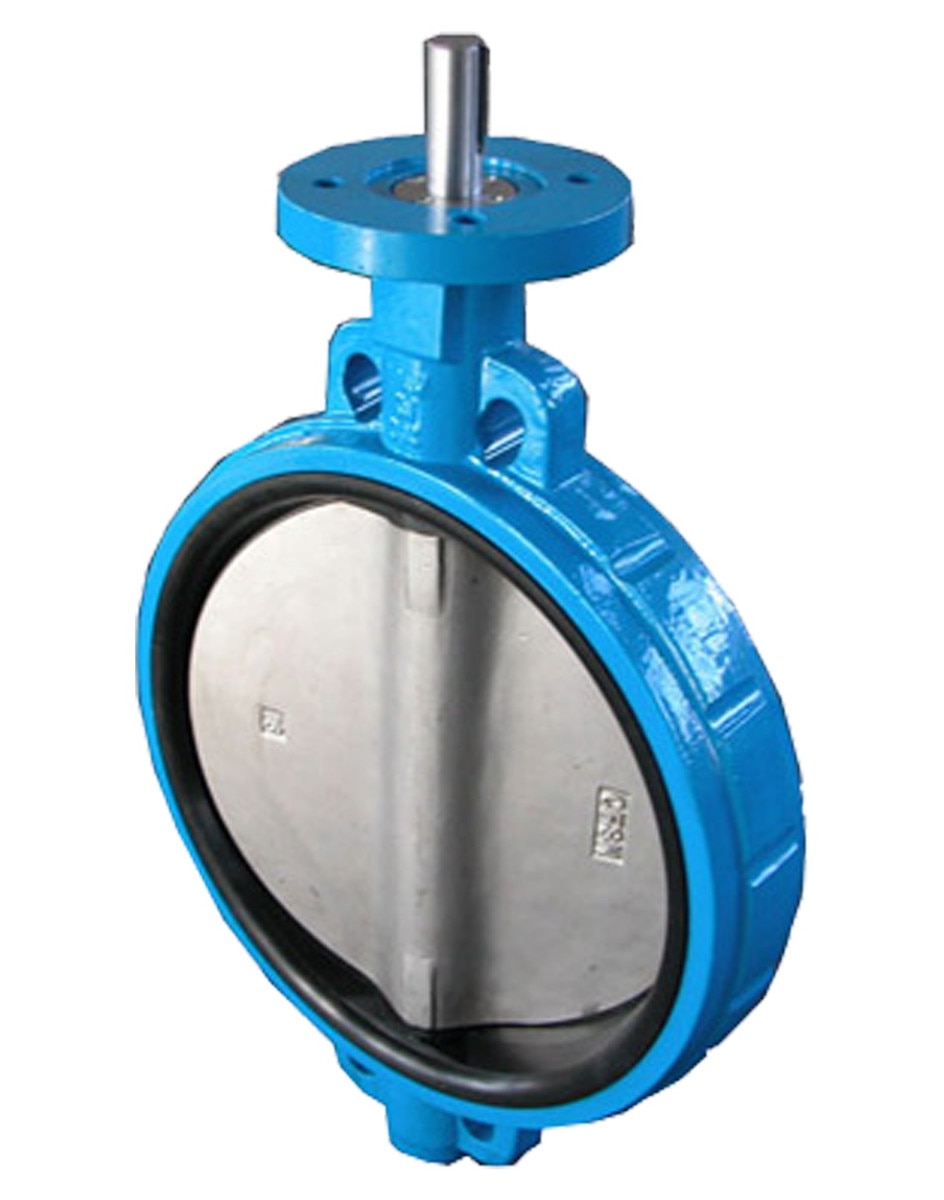

BW-2000-11DBG Series Wafer Butterfly Valve 150 WOG Ductile Iron Body 410 Stainless Steel Shaft BUNA Seat Di NP Disc Gear Operator

• 200 WOG WAFER STYLE BUTTERFLY VALVE – Gear Operator
• Valves meet MSS-SP67 & API 609
• Flange drilling to: ANSI B16.1 Class 125/150
• Testing to: API 598
• Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
• Disc: Nickel plated Ductile iron, nylon coated ductile Iron, aluminum bronze, 316 stainless steel.
• Body: Cast iron, ductile iron.

* Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.

* Caution: All 1000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.
