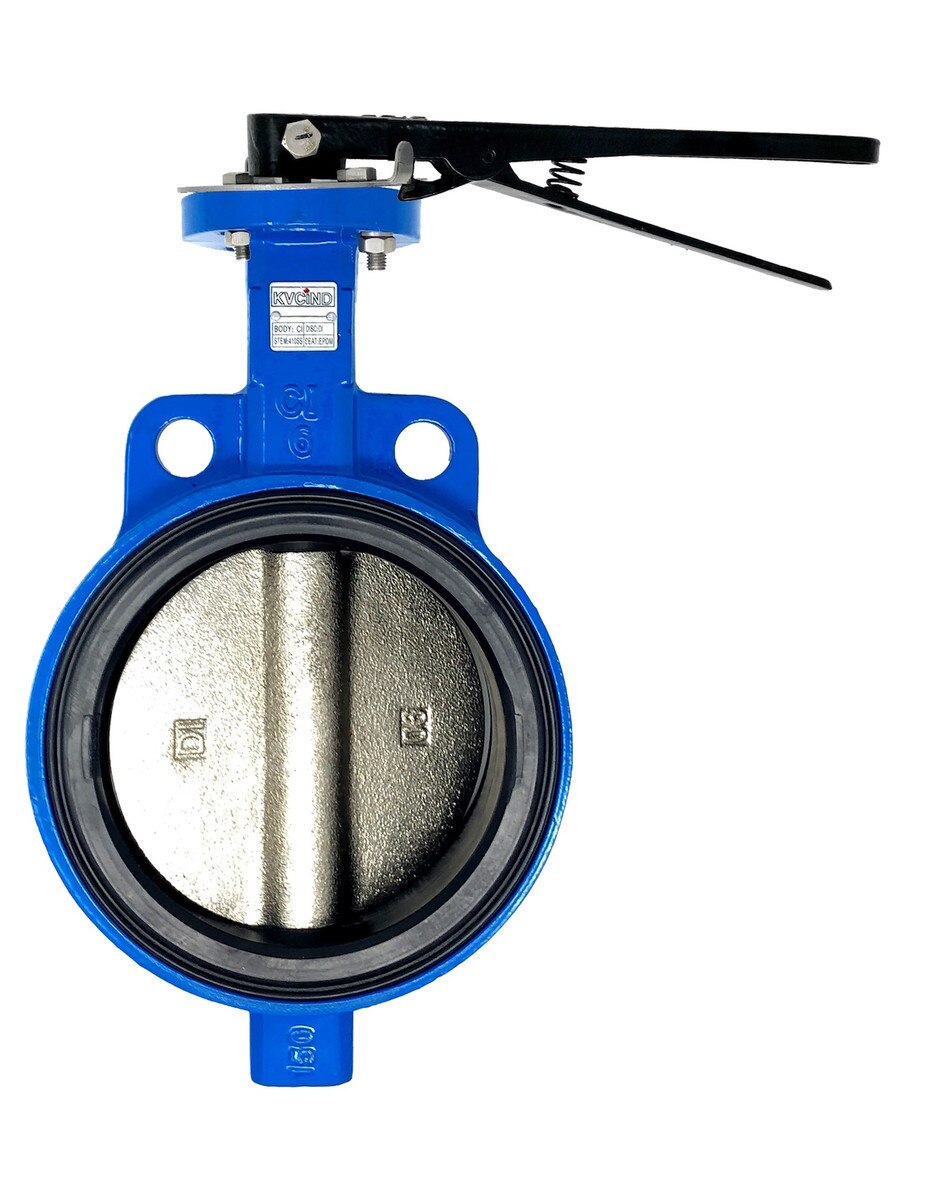

- 200 WOG WAFER STYLE BUTTERFLY VALVE – Level Handle
- Valves meet MSS-SP67 & API 609
- Flange drilling to: ANSI B16.1 Class 125/150
- Testing to: API 598
- Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
- Disc: Nickel plated Ductile iron, nylon coated ductile Iron, aluminum bronze, 316 stainless steel.
- Body: Cast iron, ductile iron.
* Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.
* Caution: All 1000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.
