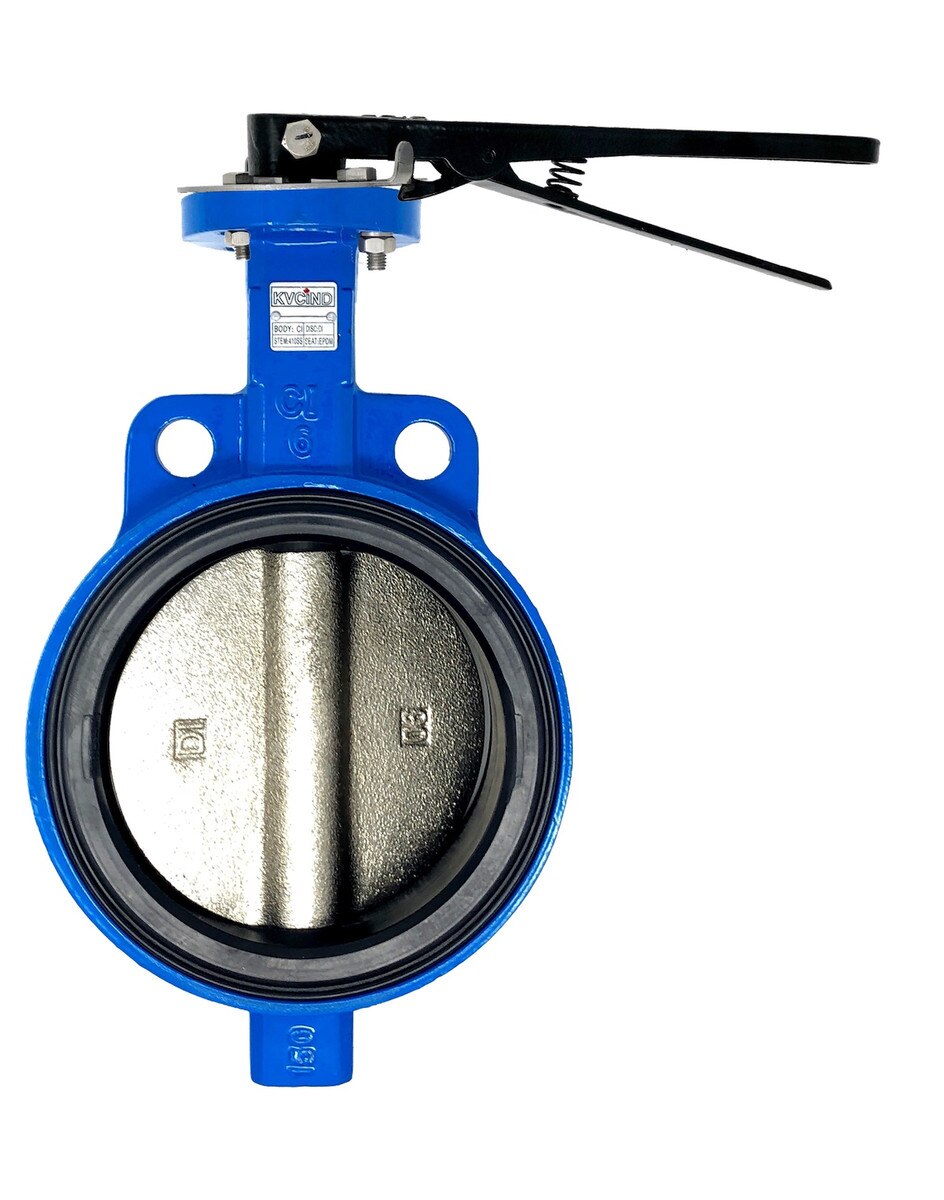

BW-1000-11DBL Series Wafer Butterfly Valve 200 WOG Ductile Iron Body DI Nickel Plated Disc BUNA Seat Lever Handle

(0) No Reviews yet
SKU: BW-1000-11DBL

This item is IN STOCK

Features

  • 200 WOG WAFER STYLE BUTTERFLY VALVE – Level Handle
  • Valves meet MSS-SP67 & API 609
  • Flange drilling to: ANSI B16.1 Class 125/150
  • Testing to: API 598
  • Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
  • Disc: Nickel plated Ductile iron, nylon coated ductile Iron, aluminum bronze, 316 stainless steel.
  • Body: Cast iron, ductile iron.

    Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.

    Caution: All 1000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.

    Detailed Product Information (PDF)
    BW & BL-1000/2000/4000 numbering system
    Cv Values for 1000/2000/4000 Series
    Manual Gear Operator for 1000/2000/4000 Series
    Manual Lever Handle for 1000/2000/4000 Series
    Seating & Unseating Torques for 1000 & 2000
    Studs & Bolts for Mounting Butterfly Valves
