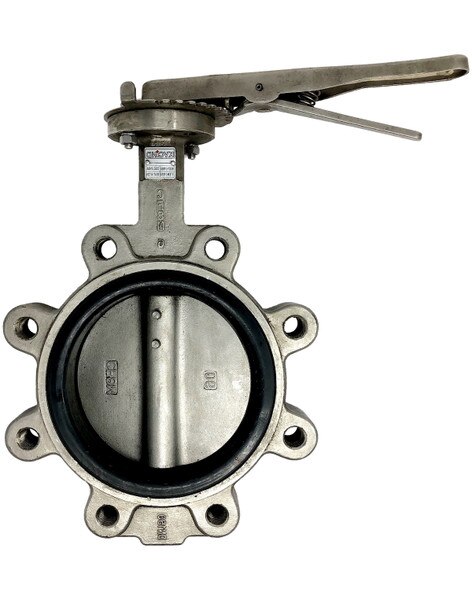

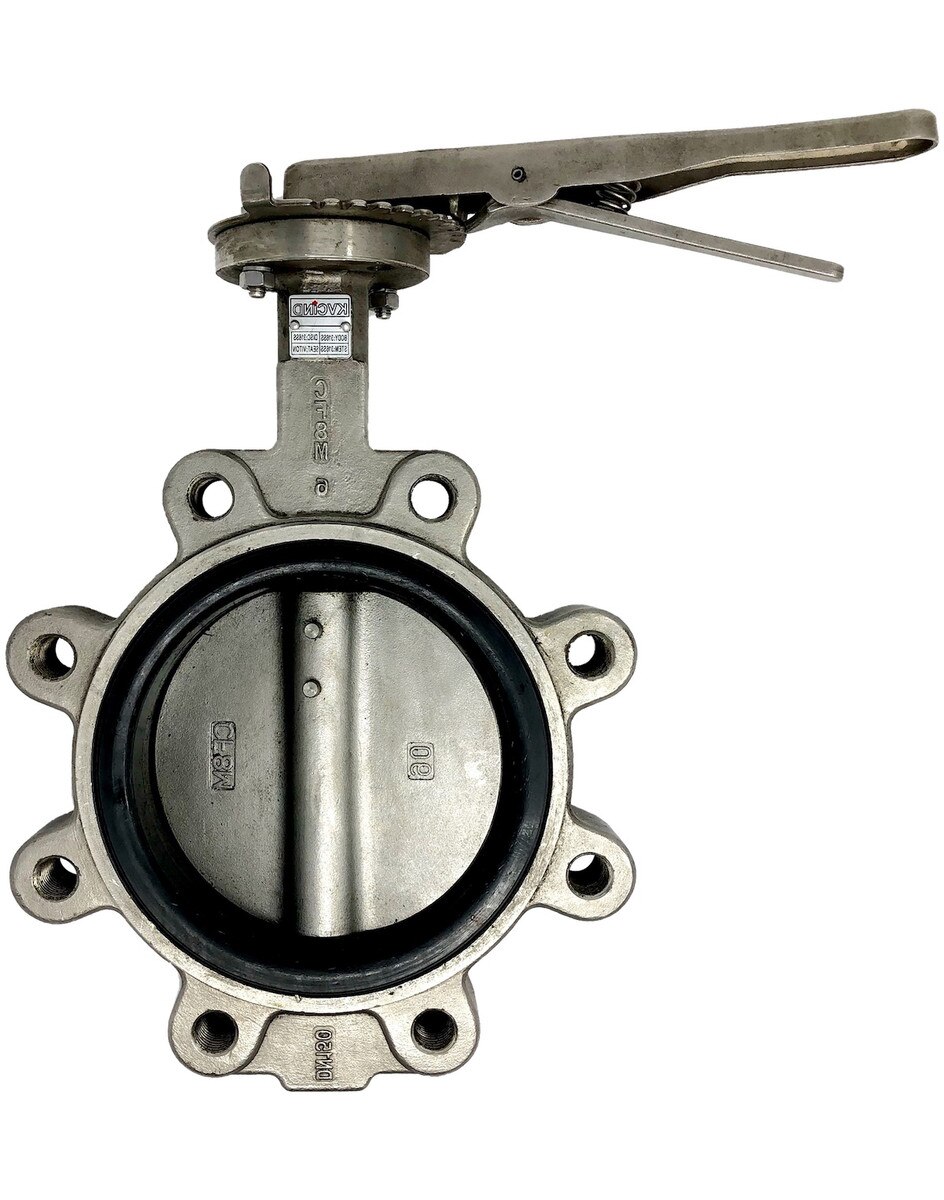

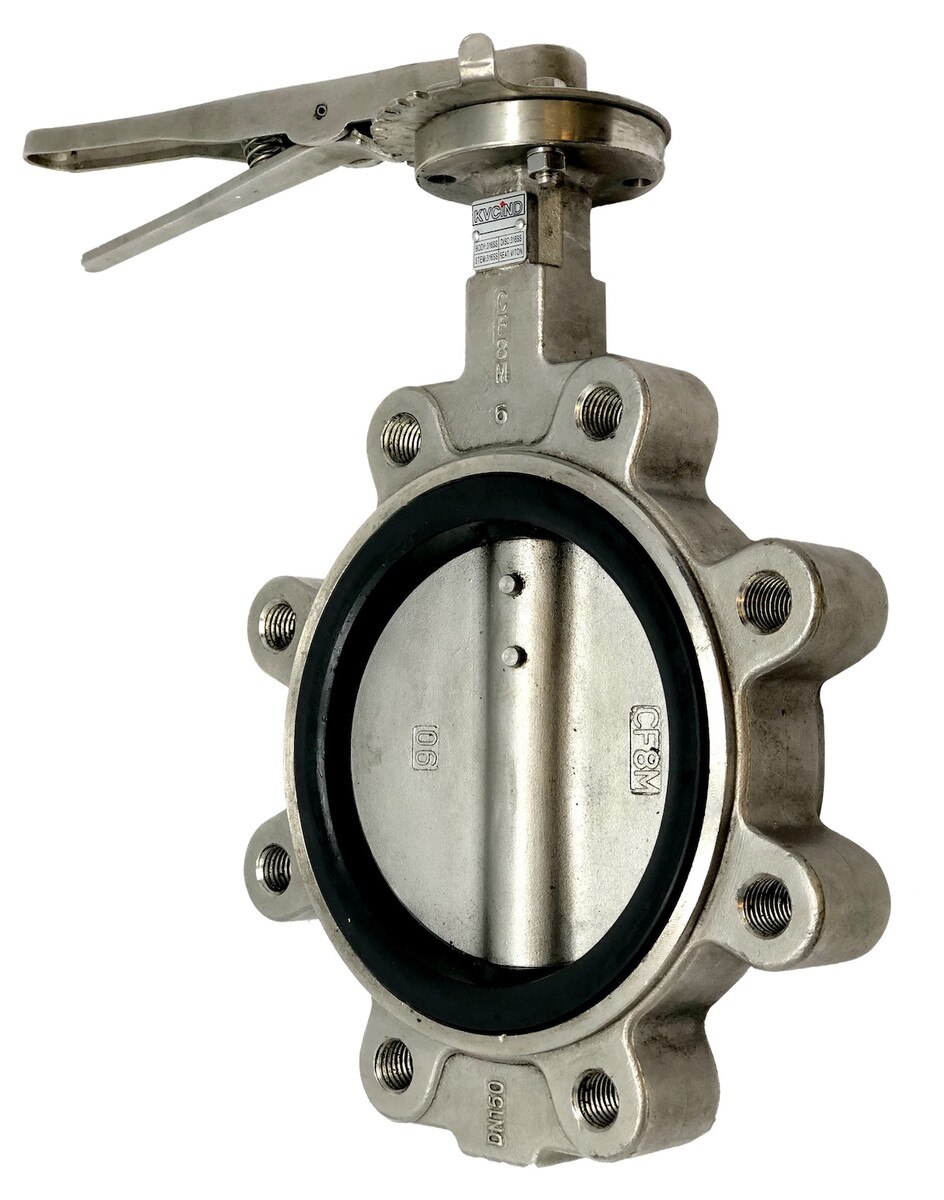

BL-2000-22DVL-S6 Series Lug Butterfly Valve 316 Stainless Steel Body Disc & Stem Viton Seat with 304 Stainless Steel Lever Handle

(0) No Reviews yet
SKU: BL-2000-22DVL-S6

This item is IN STOCK

Features

  • Valves meet MSS-SP67 & API 609
  • Flange drilling to: ANSI B16.1 Class 125/150
  • Testing to: API 598
Options:
  • Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
  • Disc: 316 Stainless Steel.
  • Body: 316 Stainless Steel.

Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.

Caution: All 2000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.

Detailed Product Information (PDF)
BW & BL-1000/2000/4000 numbering system
Cv Values for 1000/2000/4000 Series
Manual Gear Operator for 1000/2000/4000 Series
Manual Lever Handle for 1000/2000/4000 Series
Seating & Unseating Torques for 1000 & 2000
Studs & Bolts for Mounting Butterfly Valves
