  • BL-2000-22DEG Series Lug Butterfly Valve 150 WOG Ductile IronI Body 410 Stainless Steel Shaft 316 Stainless Steel Disc EPDM Seat Gear Operator

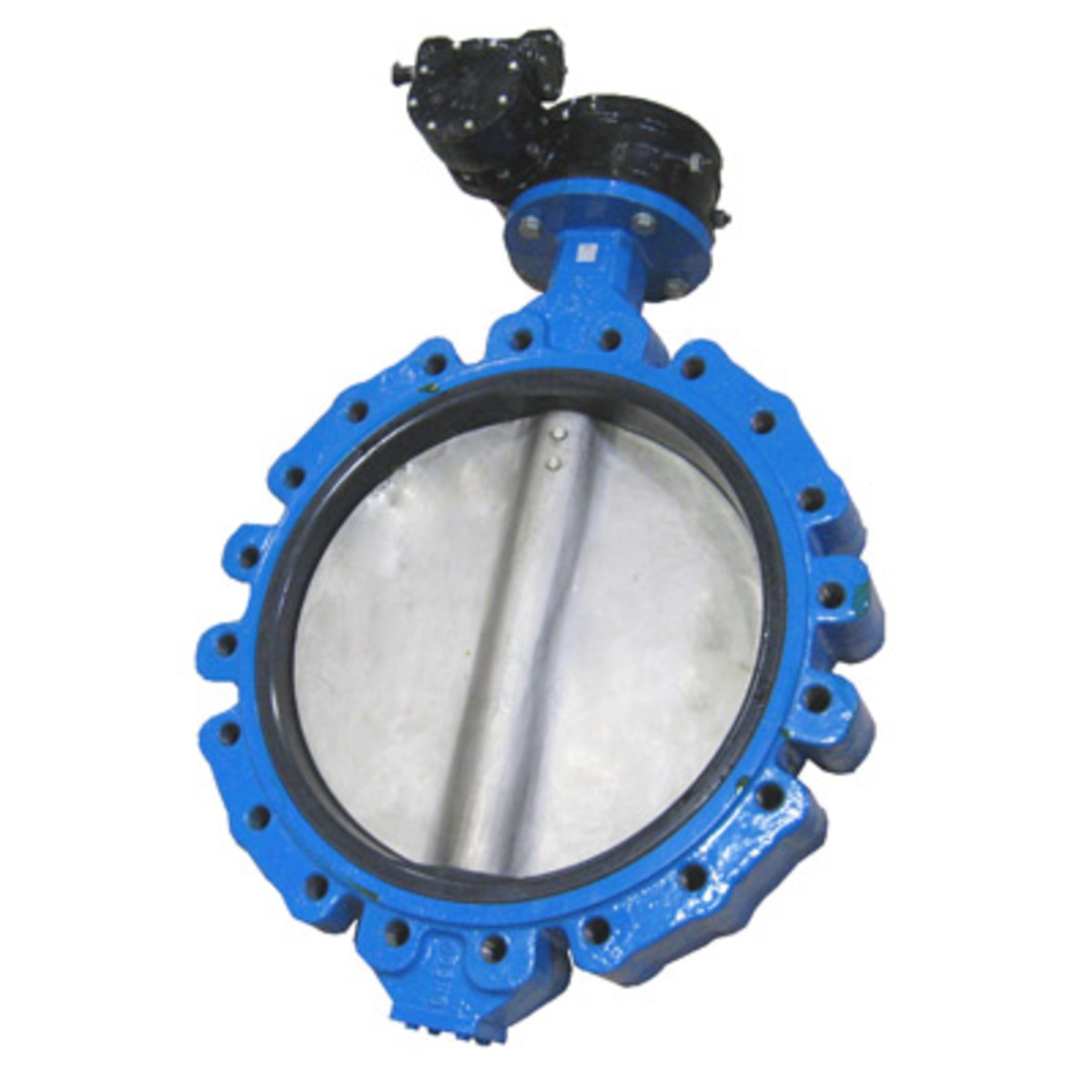

BL-2000-22DEG Series Lug Butterfly Valve 150 WOG Ductile IronI Body 410 Stainless Steel Shaft 316 Stainless Steel Disc EPDM Seat Gear Operator

(0) No Reviews yet
SKU: BL-2000-22DEG

This item is IN STOCK

Features

  • Valves meet MSS-SP67 & API 609
  • Flange drilling to: ANSI B16.1 Class 125/150
  • Testing to: API 598
Options:
  • Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
  • Disc: 316 Stainless Steel.
  • Body: 316 Stainless Steel.

Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.

Caution: All 2000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.

Detailed Product Information (PDF)
BW & BL-1000/2000/4000 numbering system
Cv Values for 1000/2000/4000 Series
Manual Gear Operator for 1000/2000/4000 Series
Manual Lever Handle for 1000/2000/4000 Series
Seating & Unseating Torques for 1000 & 2000
Studs & Bolts for Mounting Butterfly Valves
