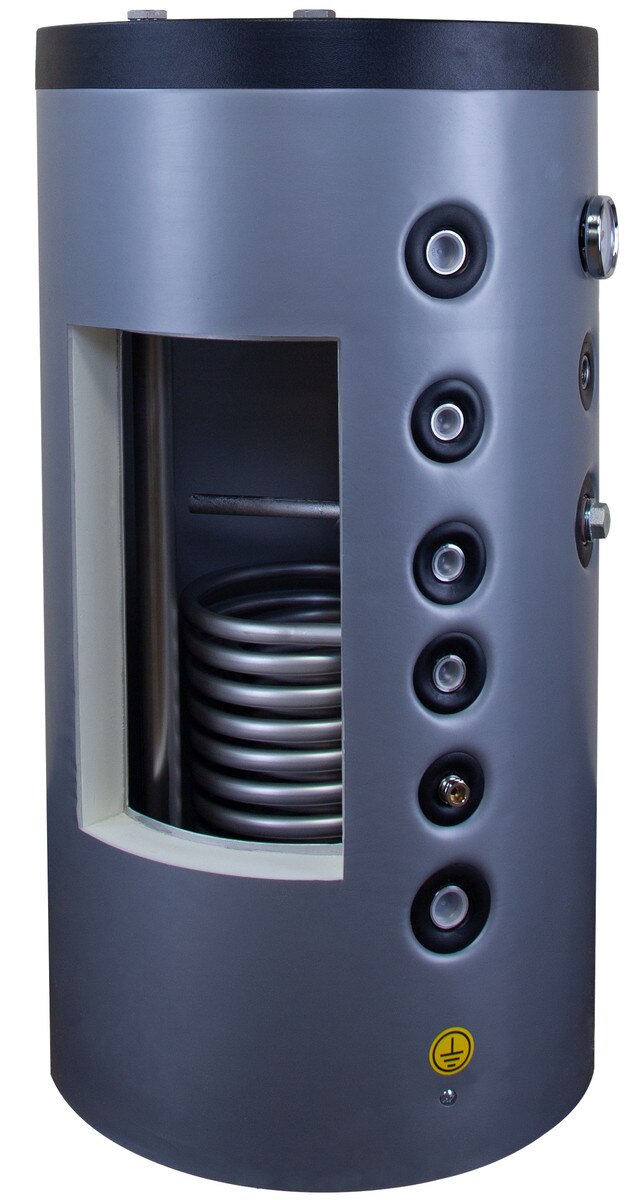

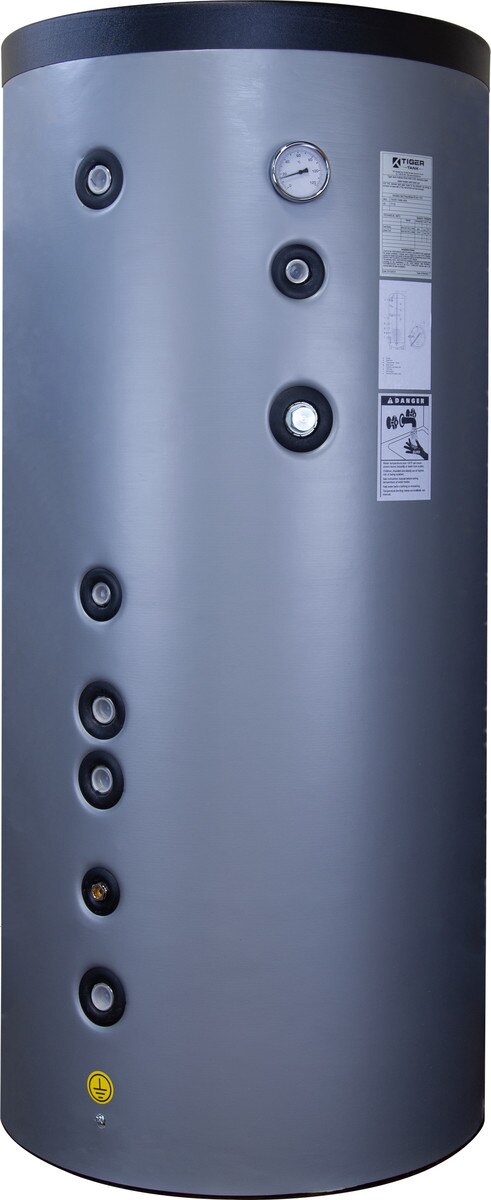

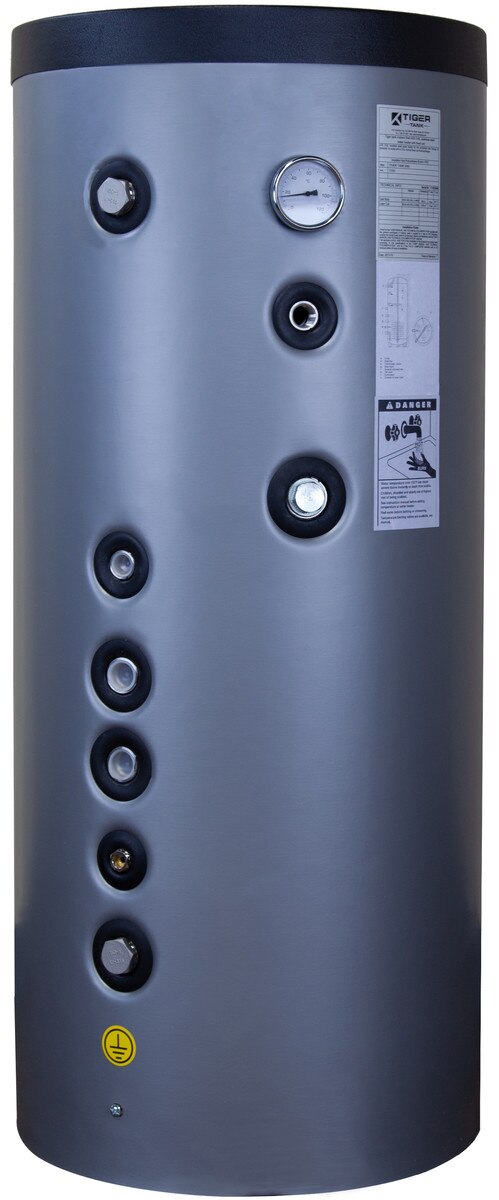

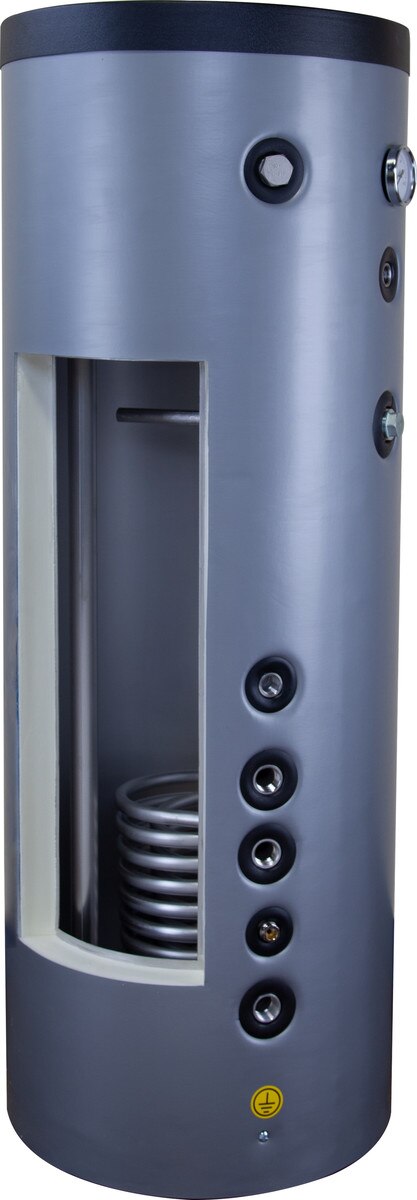

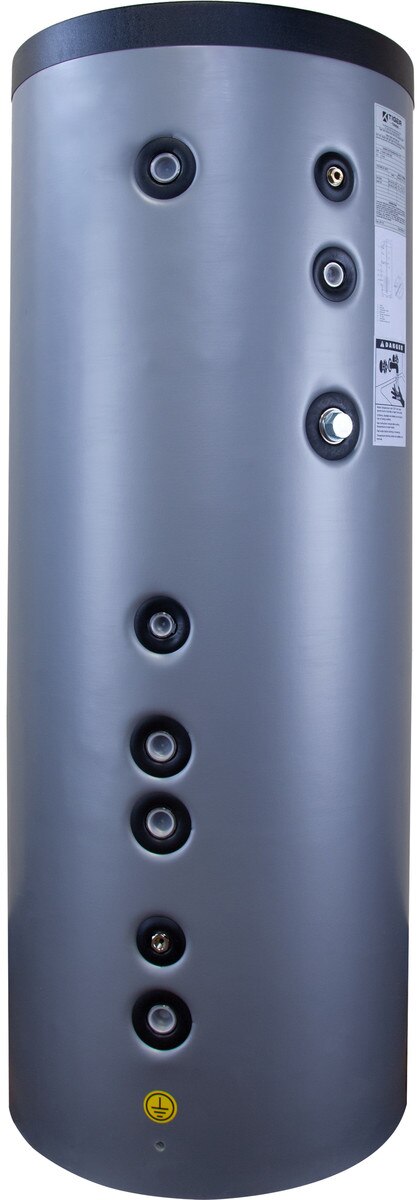

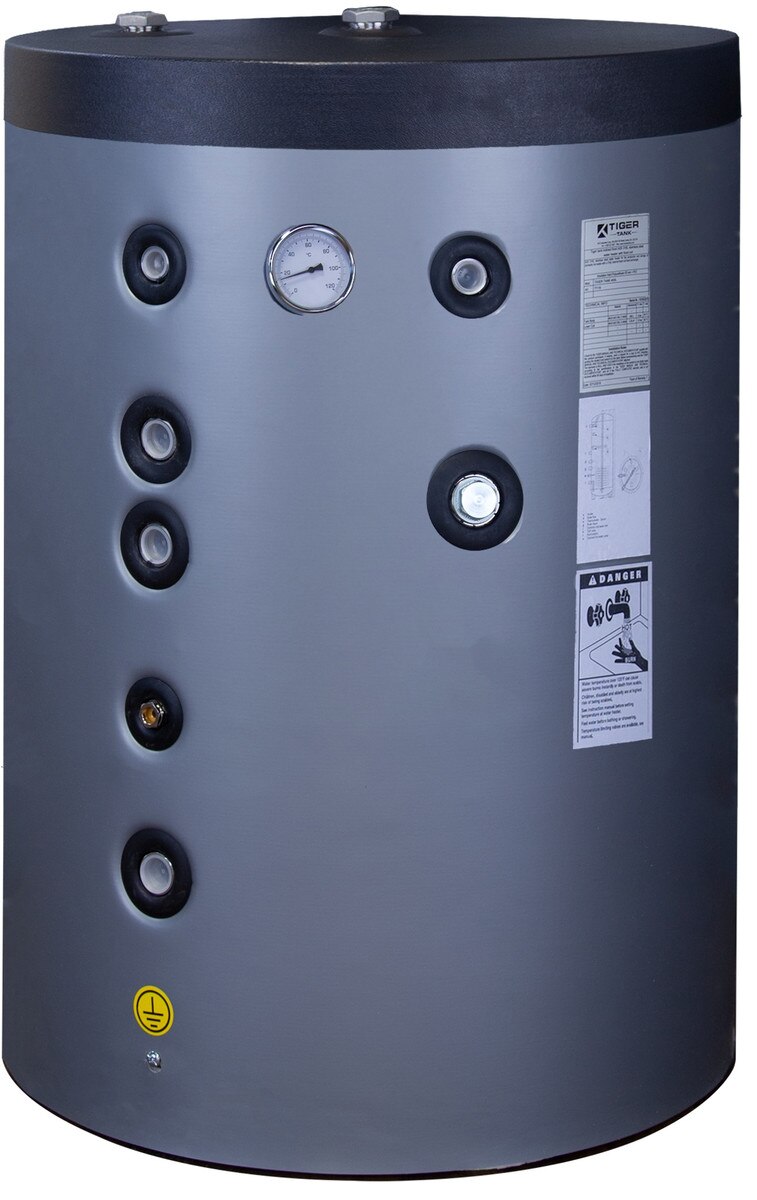

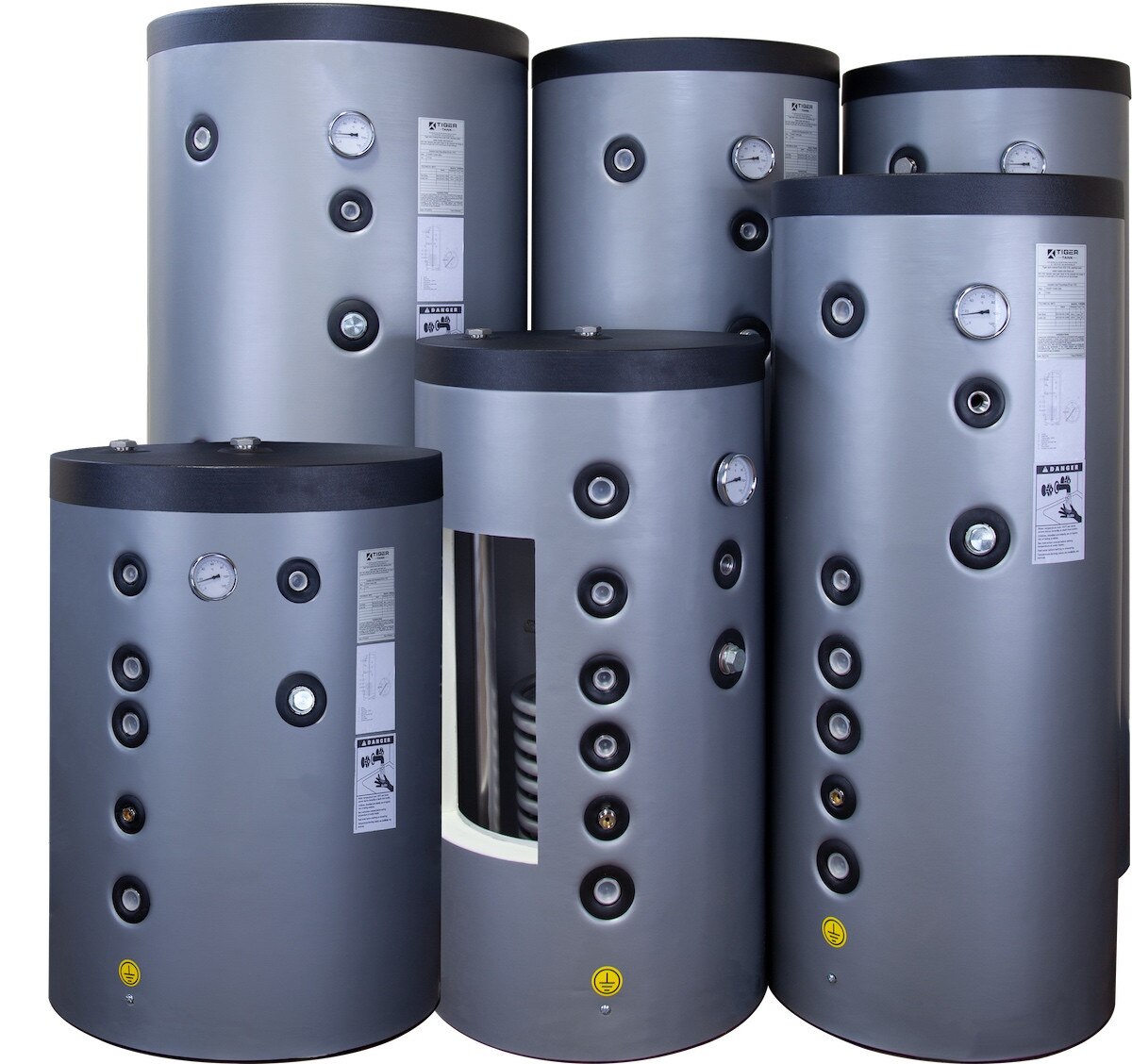

Tiger Tank Platinum Indirect Fired SS Coil

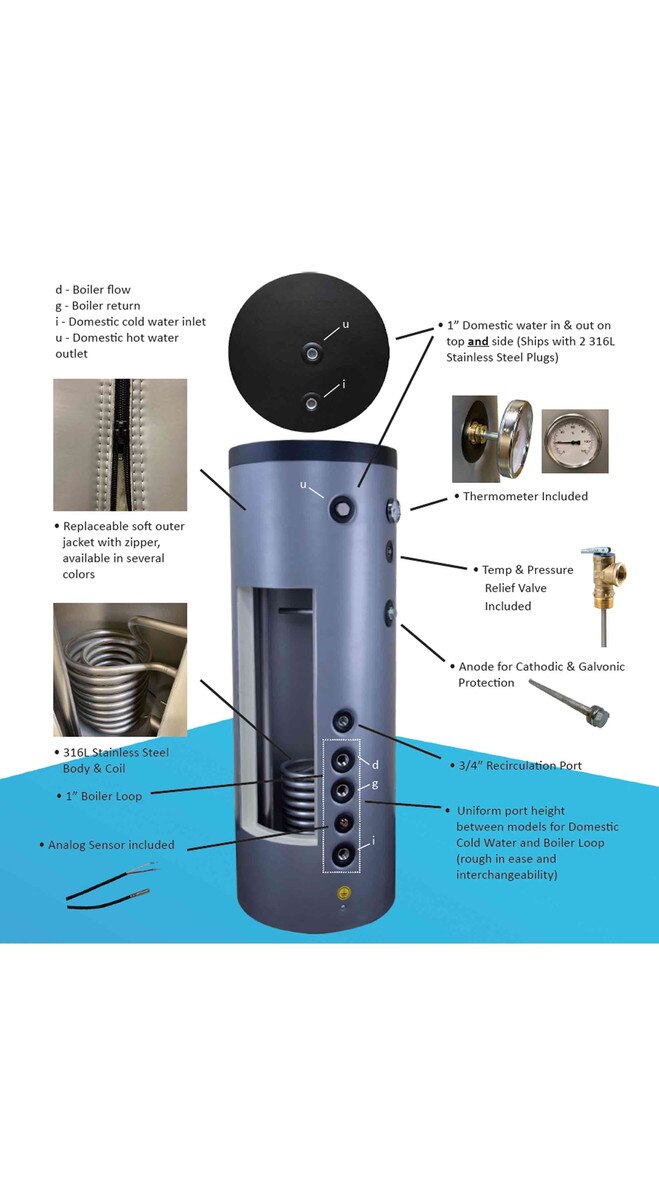

Features
- Tank is constructed out of Type 316L stainless steel
- Coil is constructed out of Type 316L stainless steel
- Fittings are constructed out of Type 316L stainless steel
- 1” Domestic water ports on Top and Side
- 1“ boiler loop ports
- 3/4” recirculation port
- Uniform port height between models for Domestic Cold Water and Boiler Loop
- Insulated with CFC free expanded 2” rigid Polyurethane
- Lead free construction
- Magnesium anode for cathodic & galvonic protection
- Outer jacket is replaceable soft vinyl (PVC) with zipper, available in several colors
- Thermometer, analog sensor and T&P valve included
- Tank ships with 2 SS 316L plugs
Tank Sensor Features:
- Connects directly to a boiler
- Allows the tank temperature to be controlled from the boiler
Tiger Tank Platinum Catalog (PDF)
NOTE: for any Tiger Tank warranty claims in Greater Vancouver Area, the tank will be subjected to a third party plumber inspection.
- If the inspector finds that the leakage is caused by a faulty tank - the inspection fee will be covered by KVC Industries and the warranty claim will be approved.
- If the leakage will be determined to be caused by external factors, the inspection fee will be on the claimer and the warranty will be void.
Please contact us to find more details.
