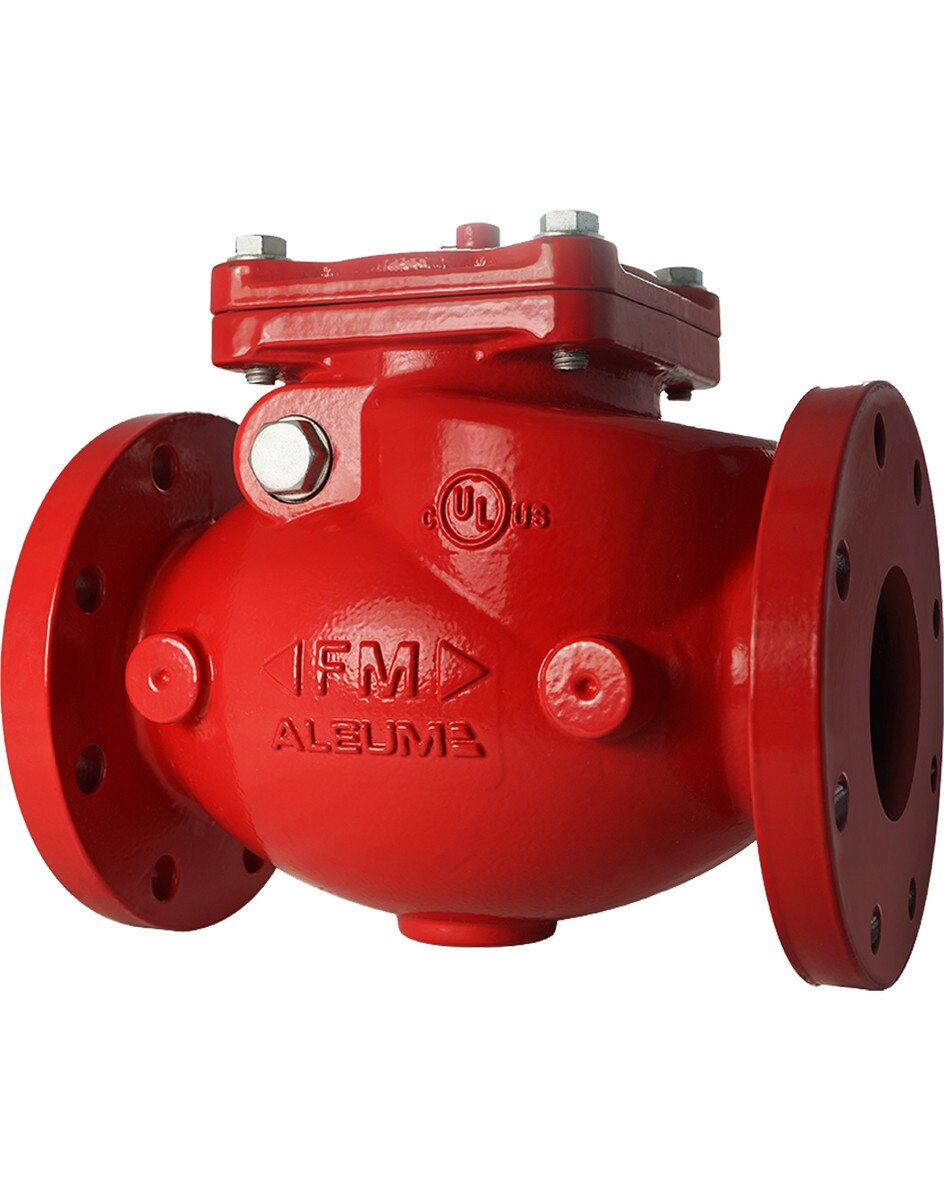

FCV-300 Series Flanged Swing Check Valve 300PSI UL/FM
Features
- Connections: Flanged Ends (ANSI B16.1 Class 125)
- Sizes: 2”, 2-1/2”, 3”, 4”, 6”, 8”, 10”, 12”
- Approvals: UL, ULC, and FM
- Max. Working Pressure: 300 PSI
- Max. Test Pressure: 600 PSI
- Max. Working Temperature: 180°F (82°C)
- Complies with AWWA C508, Clear Waterway Design
- Two Test Plugs Installed on One Side of Valve Body
- Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550
