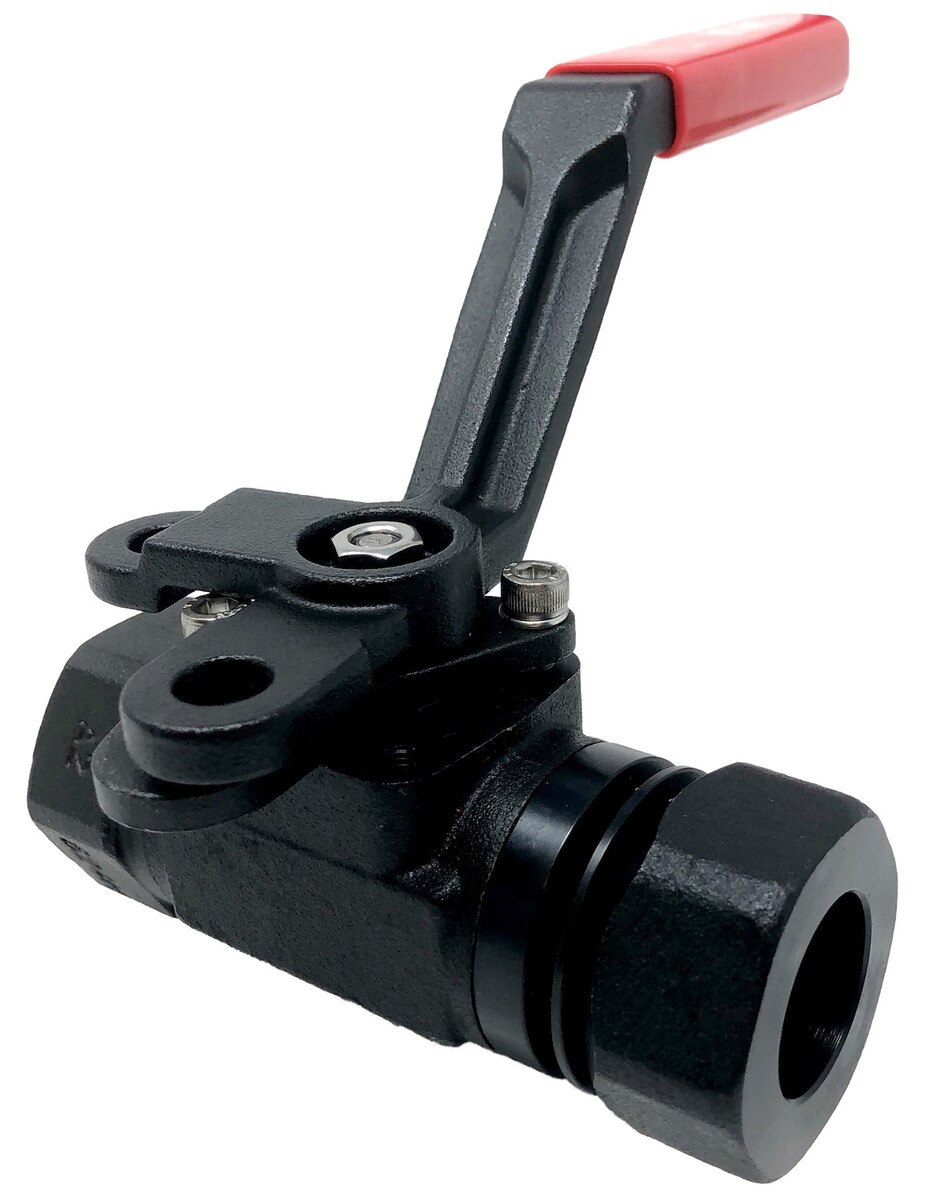

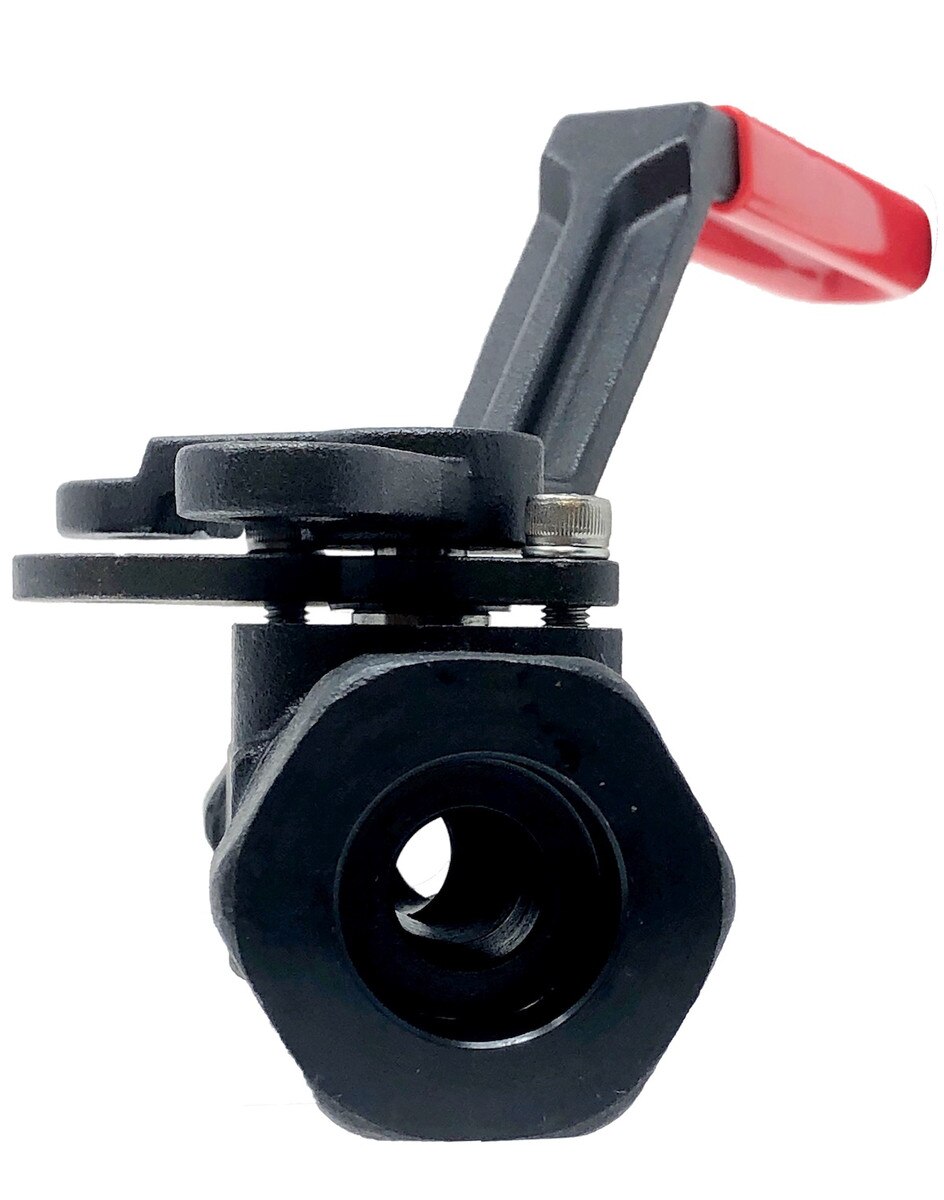

C-336ST-LF2 Series Carbon Steel Ball Valve 6000 WOG Class 2500 Seal Welded Three Piece 1/2" ~ 1-1/2" Full Port 2" Reduced Port LF2 Body & Cap PEEK Seats SW x NPT Ends ISO 5211 Mounting Pad NACE MR-01-75 Locking Lever Handle Fire Safe

(0) No Reviews yet
SKU: C-336ST-LF2

This item is IN STOCK

Features

  • Forged steel body construction secures Class 2500/6000 psi working pressure rating.
  • LF2 valve body & socket weld end cap for low-temperature applications.
  • Special design of extended socket weld end facilitates heat dissipation during welding.  No prior disassembly of valve is required therefore welding installation process is shortened.
  • Use of body O-ring and body joint gasket double secures NO LEAKAGE.
  • Live-loaded packing gland for self-adjustment of stem packing compression.
  • Rugged lockable lever handles for safety and long service life.
  • Body O-rings are placed ahead of the body cap threads, providing a tight seal and protection of threads from flow media.
  • Gland bolts allow for easy packing adjustment without handle removal.
  • Pressure equalizing seats & Bottom-loaded blow-out proof stem. Vented ball equalizes pressure between the body cavity and the flow stream to prevent seat damage due to thermal cycling.
  • Full compliance with ASME/ANSI B16.34 & EN12516-1.
  • Socket weld ends complied with ANSI B16.11 & EN 12760.

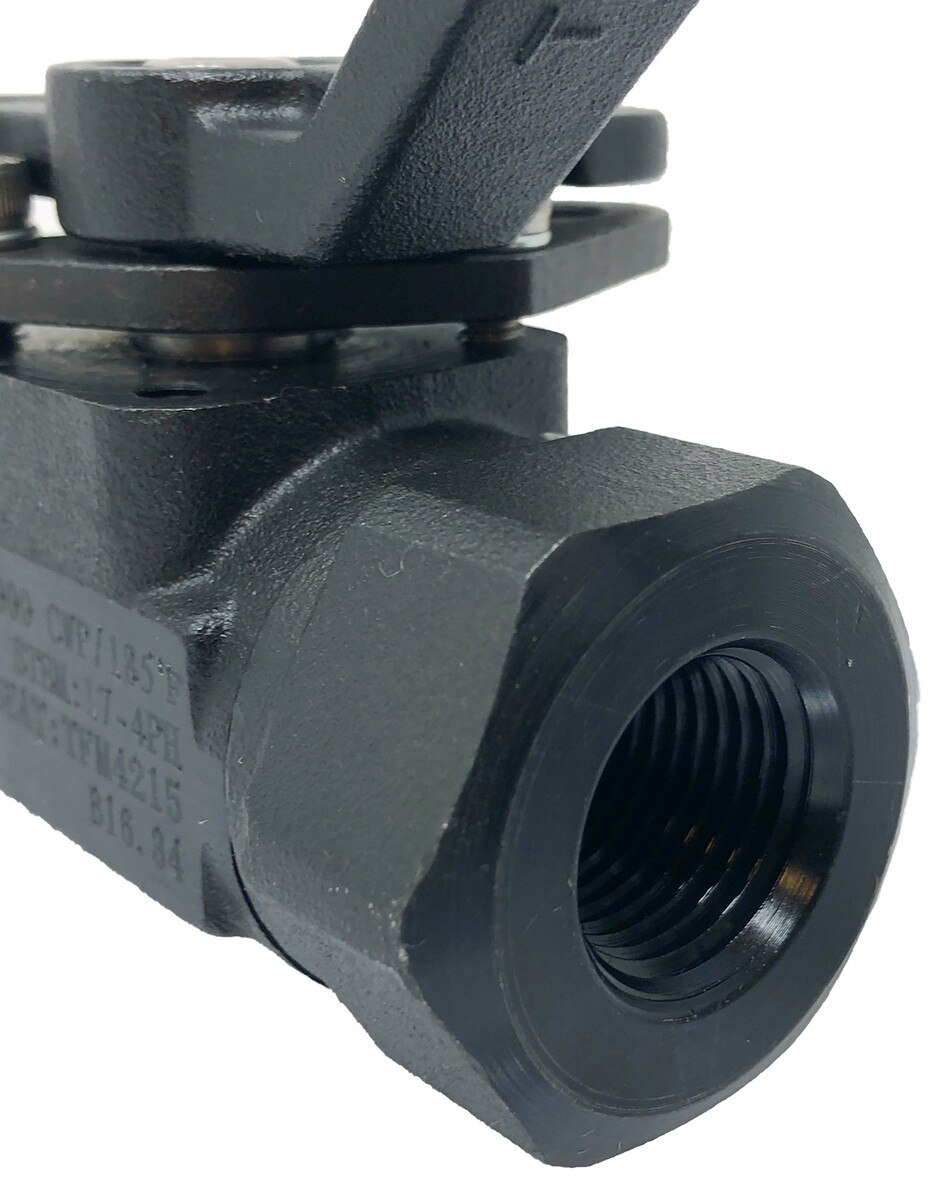

  • NPT threaded ends complied with ANSI B1.20.1.
  • NPTF threaded ends complied with ANSI B1.20.3.
  • Tested according to API 598.


        Detailed Product Information (PDF)
