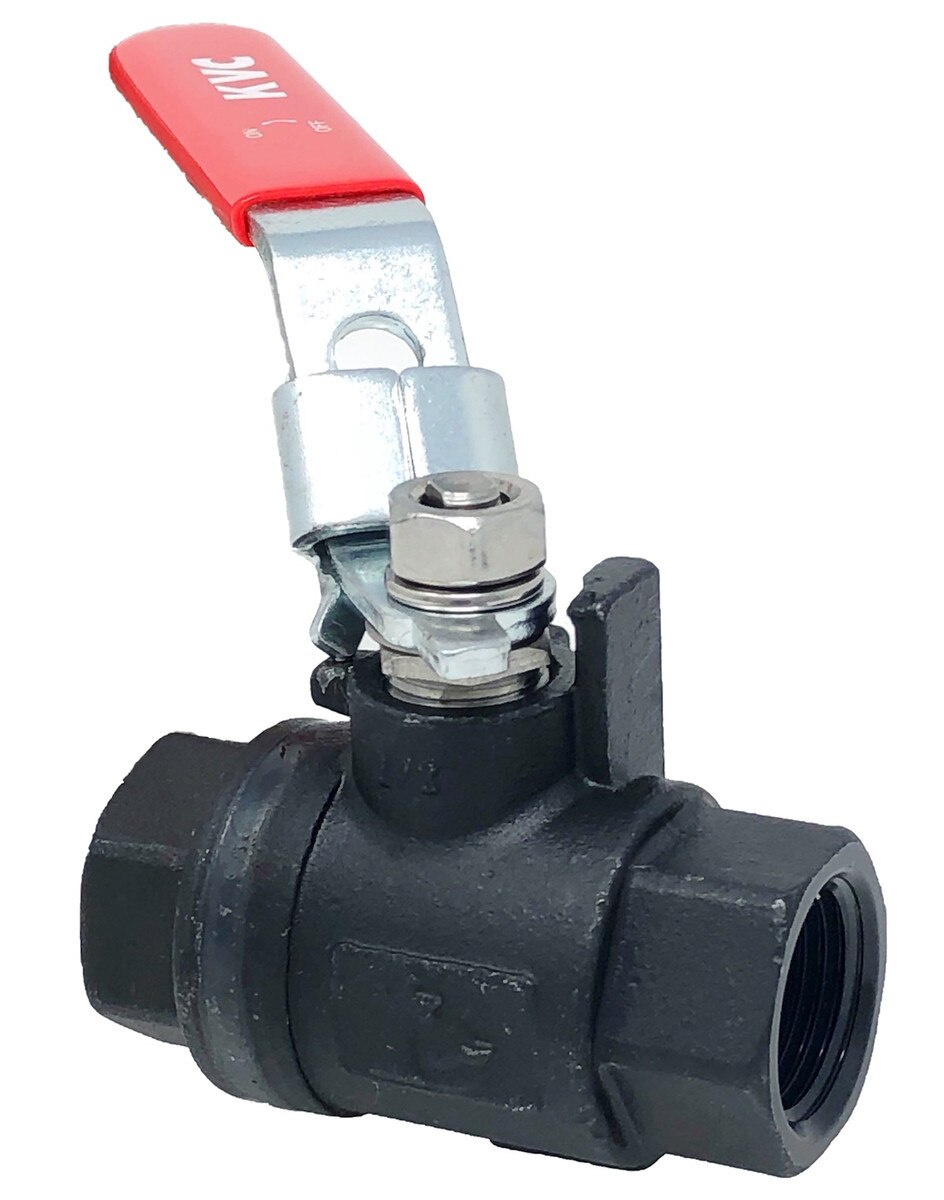

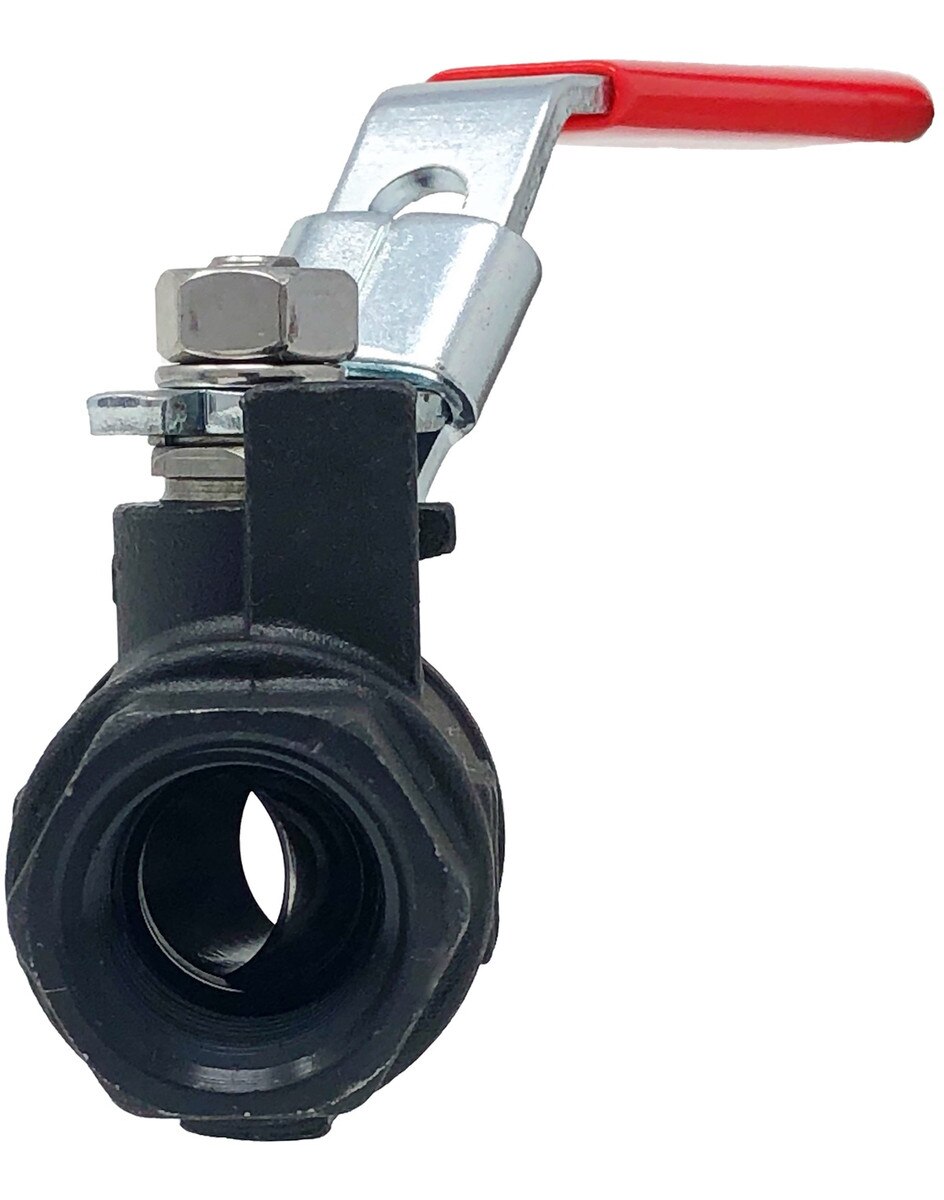

C-292T Series Carbon Steel Ball Valve 1/4" ~ 2" 2000 WOG 2-1/2" ~ 4" 1500 WOG Two Piece Full Port WCB Body 304 Stainless Steel Ball RTFE Seat NPT Threaded Ends Locking Level Handle
Features
- ¼” TO 2”: 2000 W.O.G, 2 ½ “ TO 4”: 1500 W.O.G
- Strengthened construction secures 2000 psi working pressure rating. Reinforced TFE seats increase durability.
- Adjustable packing gland.
- Bottom-loaded blow-out proof stem.
- Basic design complied with ANSI B16.34 & EN 12516-1.
- NPT threaded ends complied with ANSI B 1.20.1..
- Re, Rp & G Threaded ends complied with BS 21/2779, JIS B- 0203/0202, DIN 259/2999, ISO 228-1, ASl 722.1/1722.2 are upon request.
- Tested according to API 598
