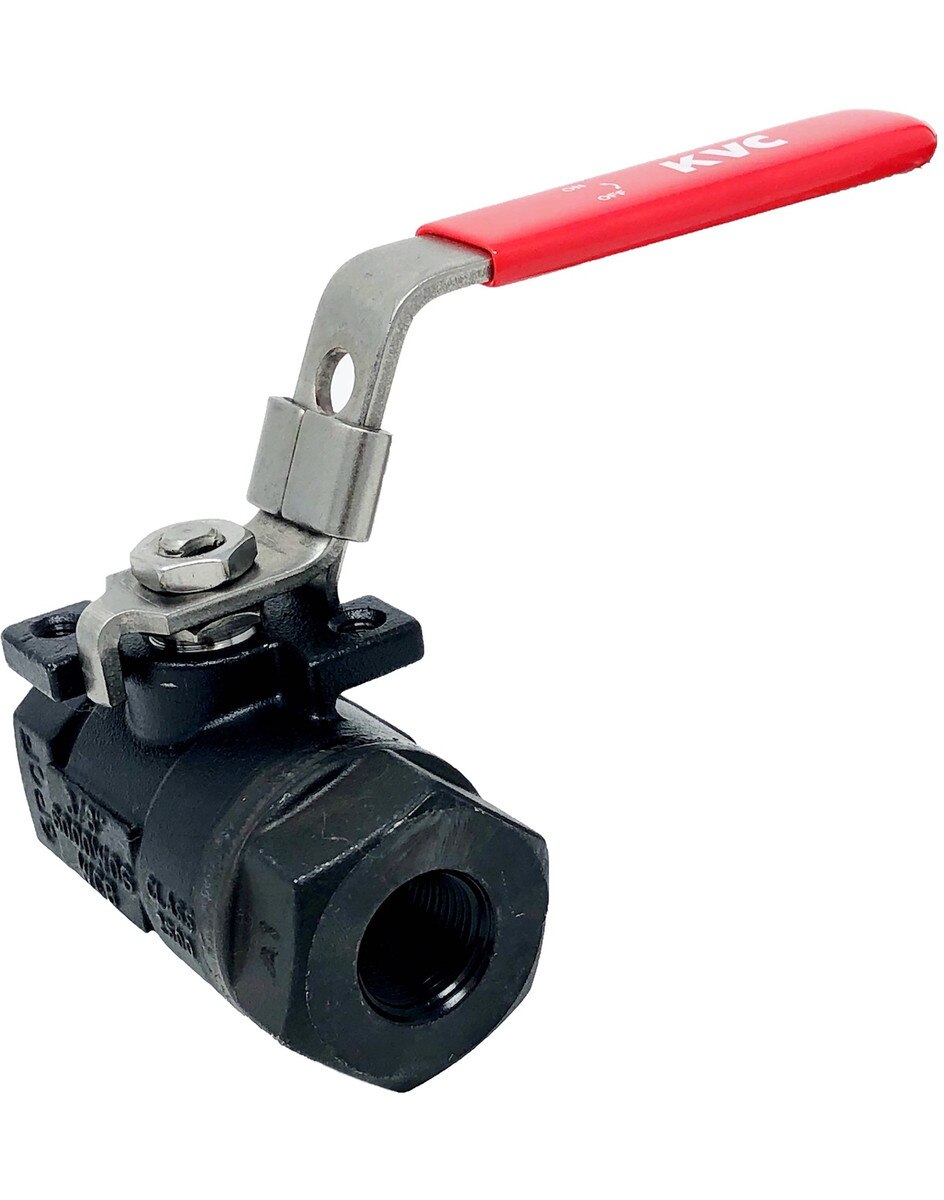

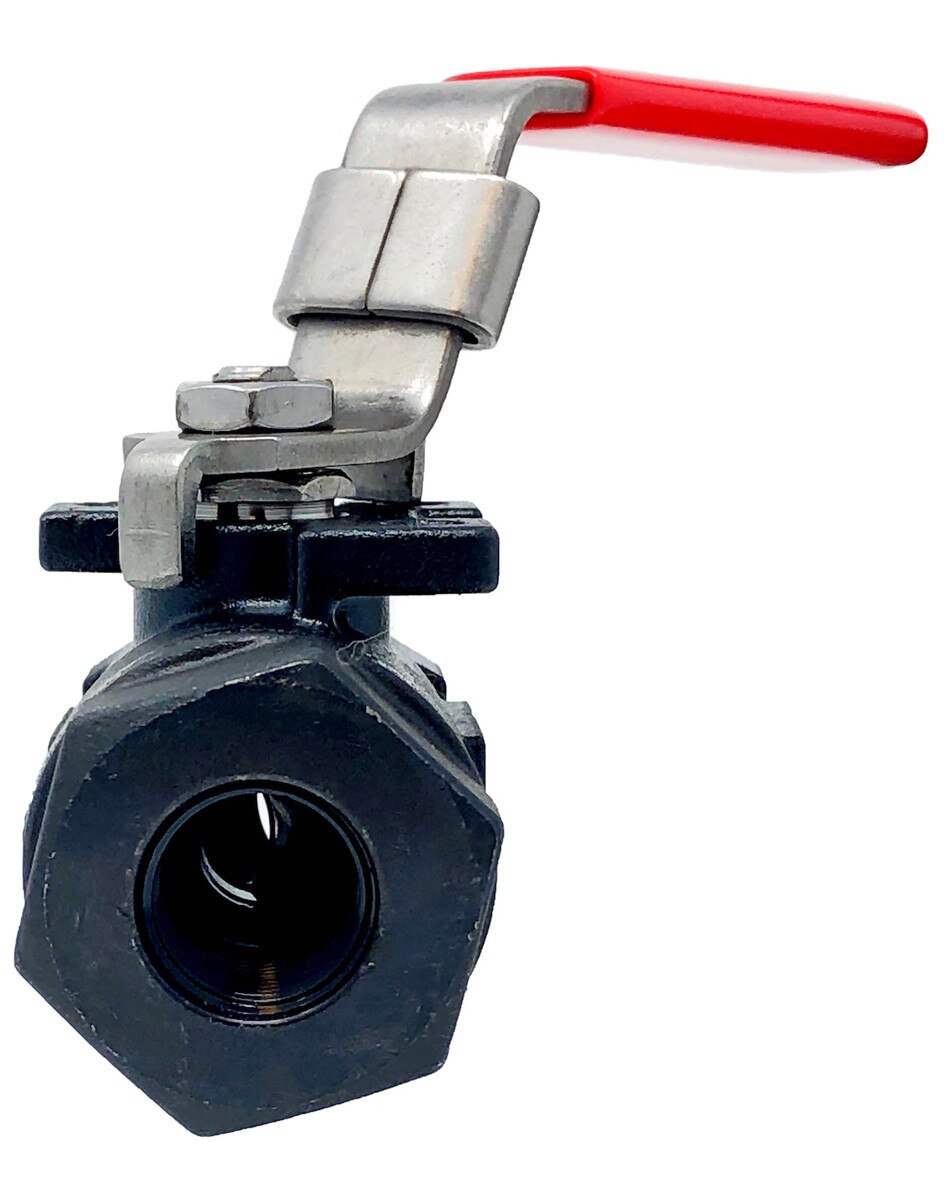

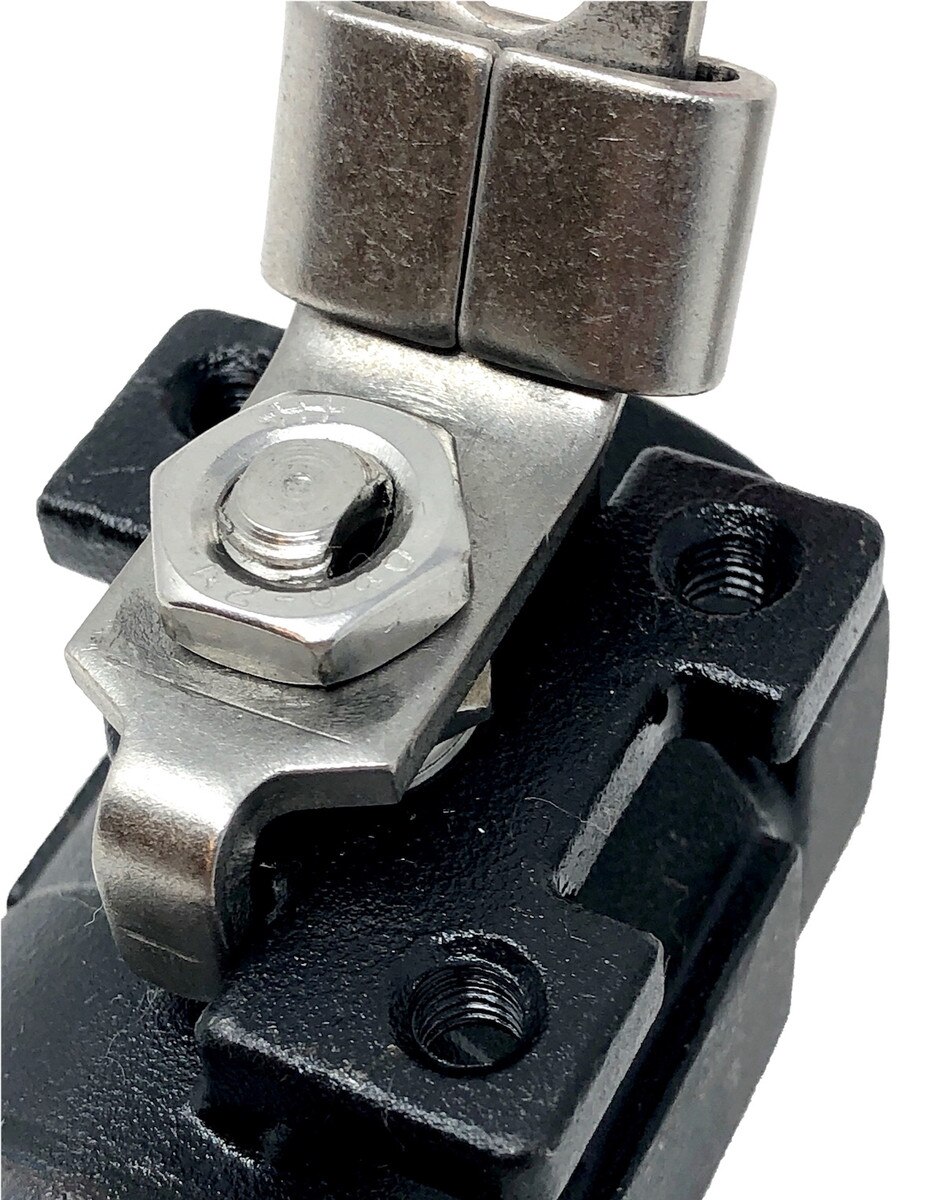

C-206TMLW Series Carbon Steel Ball Valve 6000 WOG Seal Welded Two Piece 1/4" ~ 1-1/2" Full Port 2" Reduced Port 316 Stainless Steel Body & Ball Delrin Seat NPT Threaded Ends ISO 5211 Mounting Pad NACE MR-01-75 Locking Lever Handle
- Strengthened construction secures 6000 psi working pressure rating. Enlarged bottom-loaded blow-out proof stem.
- Gasket is placed ahead of the body cap threads, providing a tight seal and protection of threads from flow media.
- Vented ball equalizes pressure between the body cavity and the flow steam to prevent seat damage due to thermal cycling.
- Basic design complied with ANSI B16.34 & EN 12516-1.
- NPT threaded ends complied with ANSI B 1.20.1.
- Rc, Rp & G Threaded ends complied with BS 21/2779, JIS B-0203/0202, DIN 259/2999, ISO 228-1, AS1722.1/1722.2 are upon request.
- Tested according to API 598.
