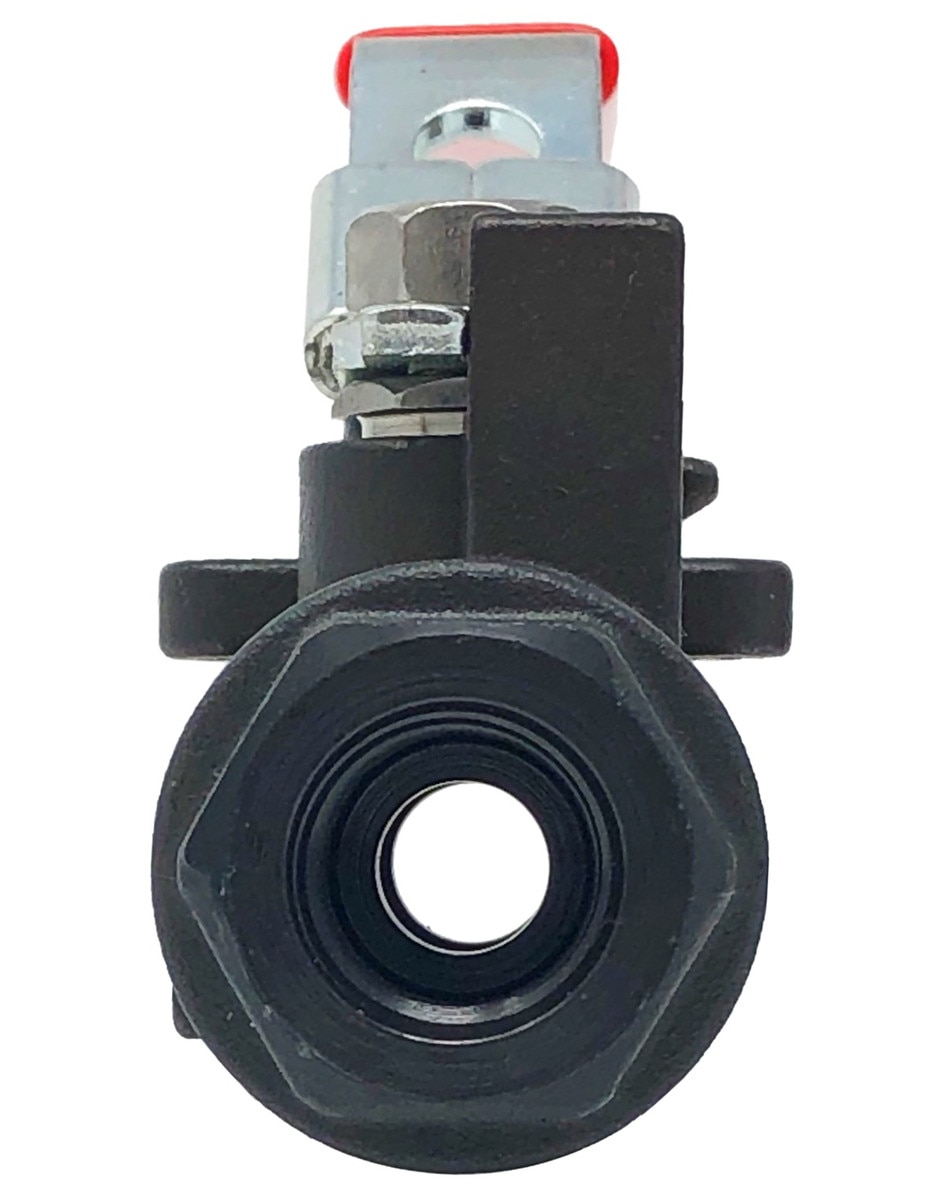

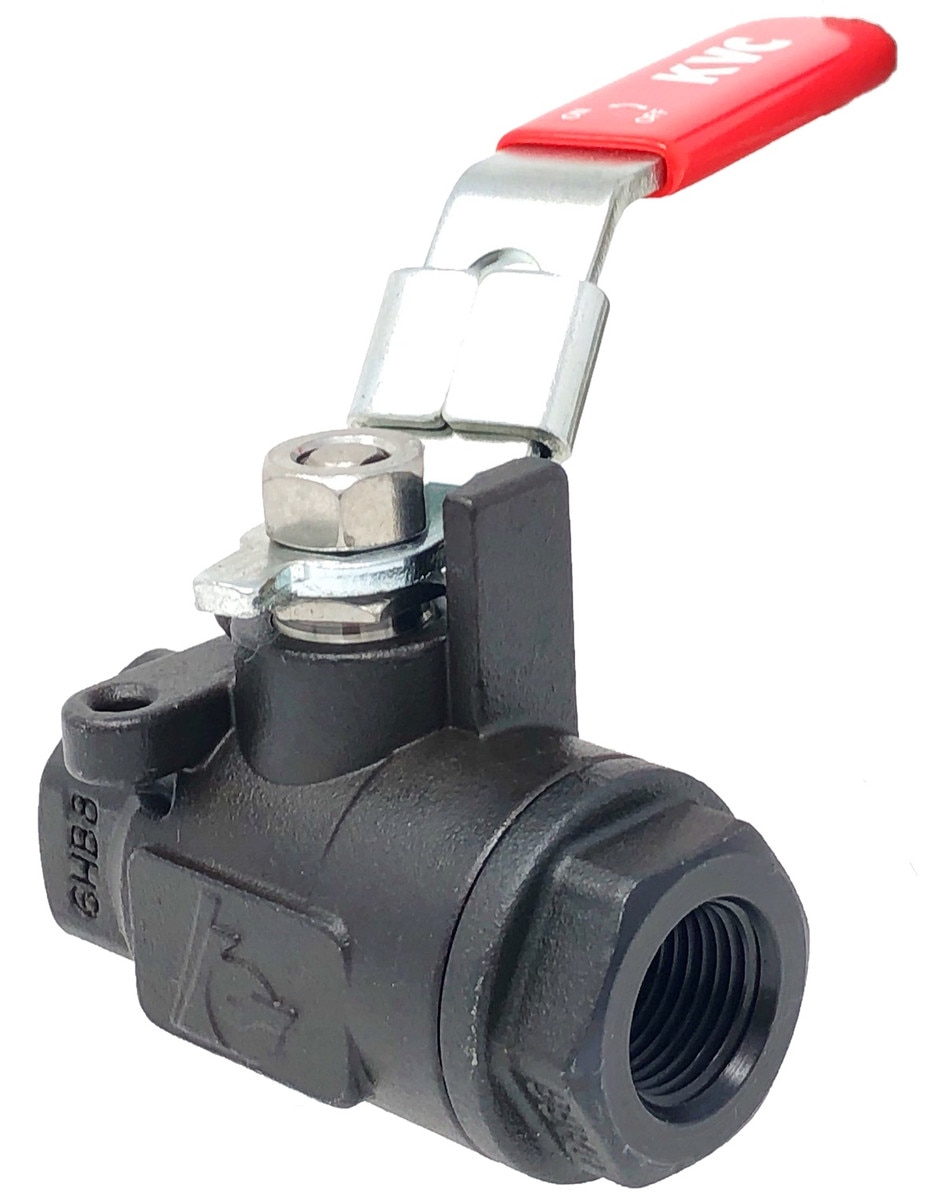

- ¼” TO 1 ½ “ & 3’: full port; 2”: standard port.
- Strengthened constructionsecures 3000 psi workingpressure rating. Enlarged bottom-loaded blow-out proofstem.
- Gasket is placed ahead of the body cap threads,
- providing a tight seal and protection of threads from flow media.
- Vented ball equalizes pressure between the body cavity and the flow stream to preventseat damagedue to thermal cycling.
- Basic design complied with ANSI B16.34 & EN 12516-1.
- NPT threaded ends complied with ANSI B 1.20.1..
- Re, Rp & G Threaded ends complied with BS 21/2779, ns B-0203/0202, DIN 259/2999, ISO 228-1, AS1722.1/1722.2 are upon request
- Tested according toAPI 598.
