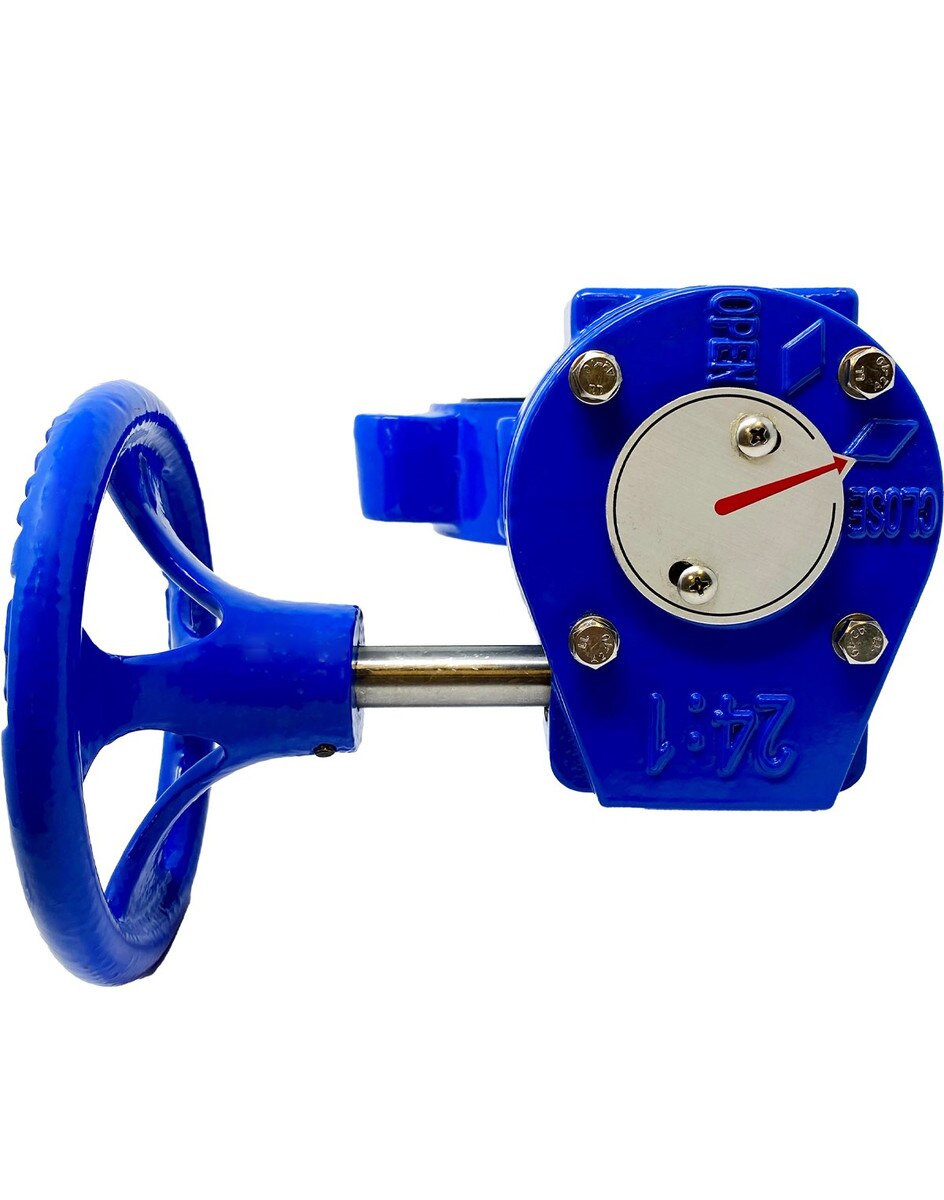

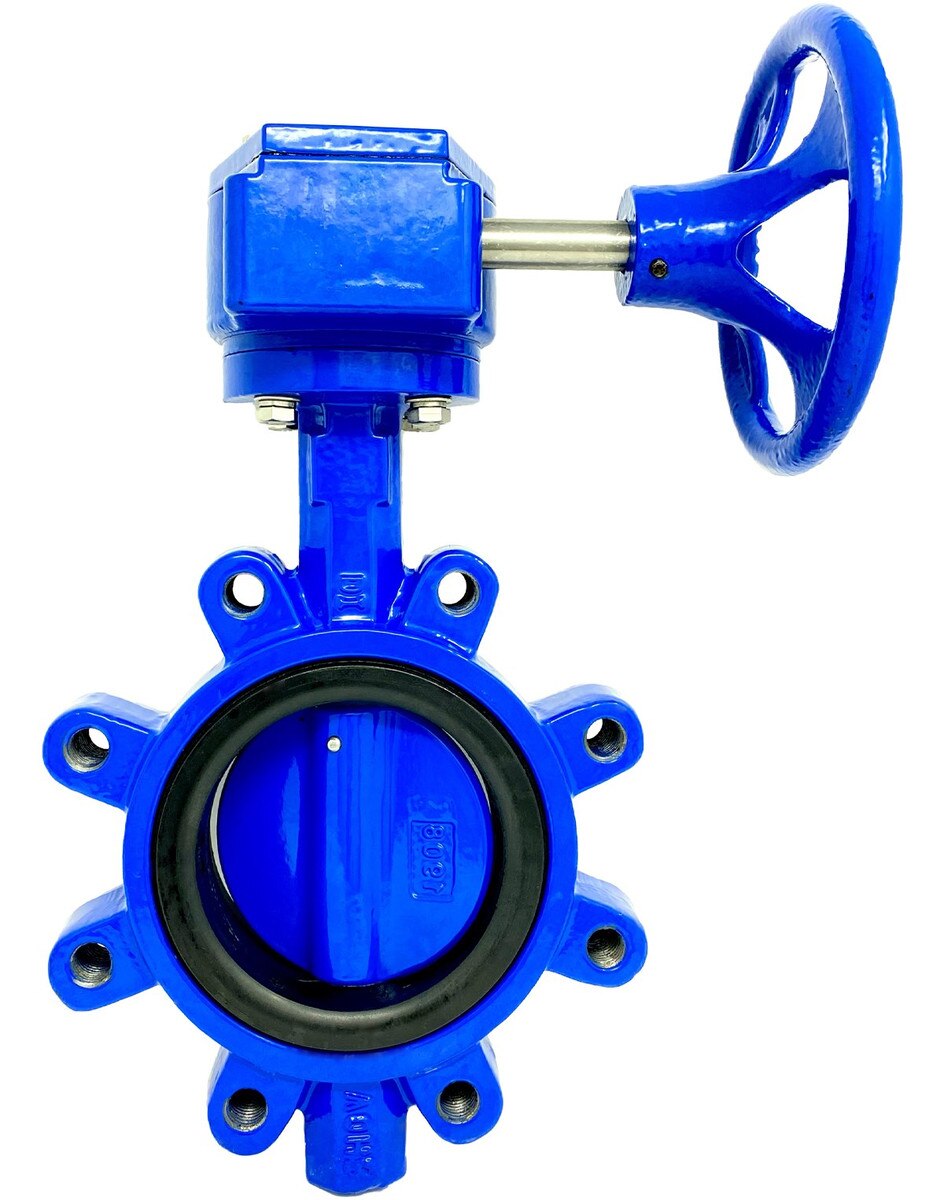

BL-5000-11DEG Series Lug Butterfly Valve 200 WOG Ductile Iron Body Ductile Iron Disc Epoxy Coating EPDM Seat Gear Operator with Handwheel NSF Approval

(0)No Reviews yet
SKU: BL-5000-11DEG

This item is IN STOCK

Features

  • Valves meet MSS-SP67 & API 609
  • Flange drilling to: ANSI B16.1 Class 125/150
  • Testing to: API 598

Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.

Caution: All 2000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.

Detailed Product Information (PDF)
BW & BL-1000/2000/4000/5000 numbering system
Cv Values for 1000/2000/4000/5000 Series
Seating & Unseating Torques for 1000 & 2000
Studs & Bolts for Mounting Butterfly Valves
