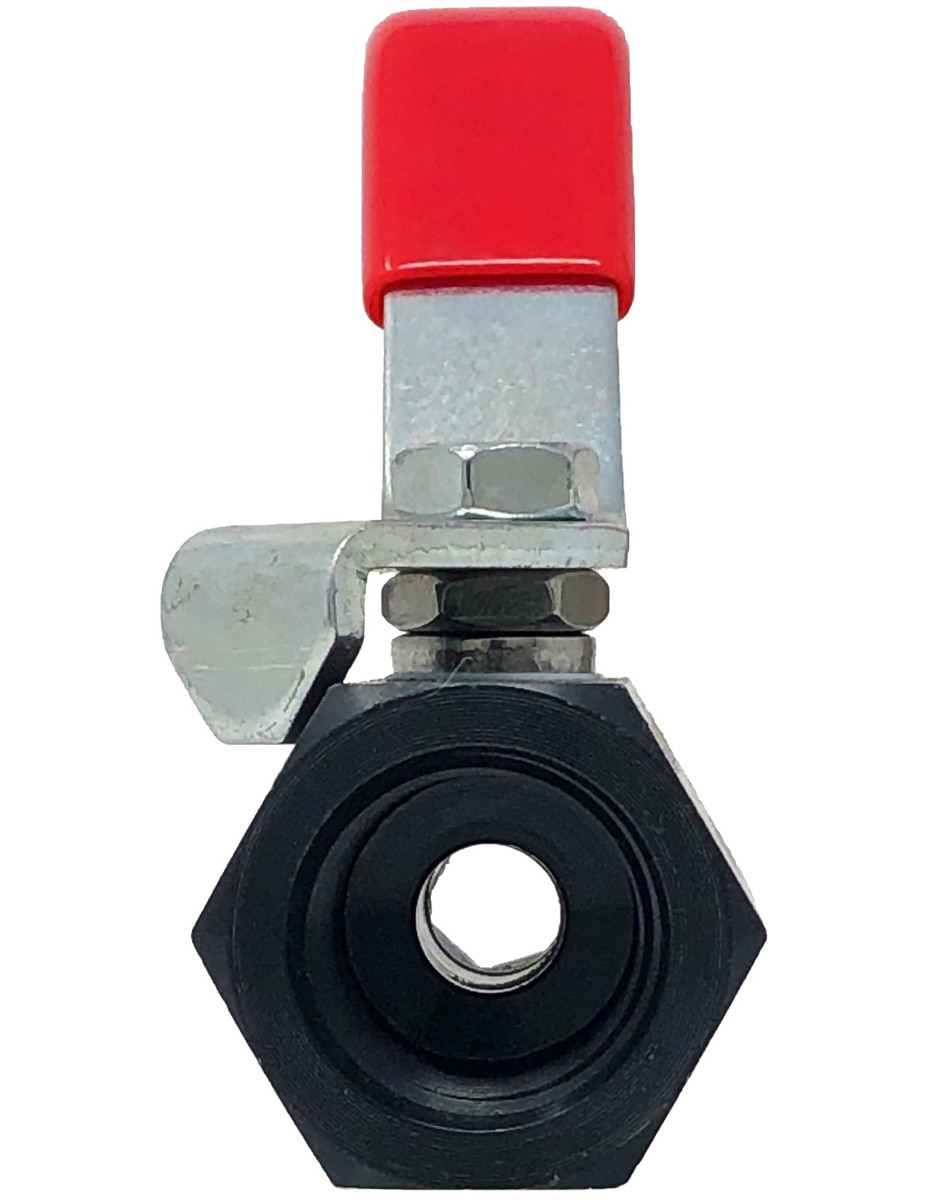

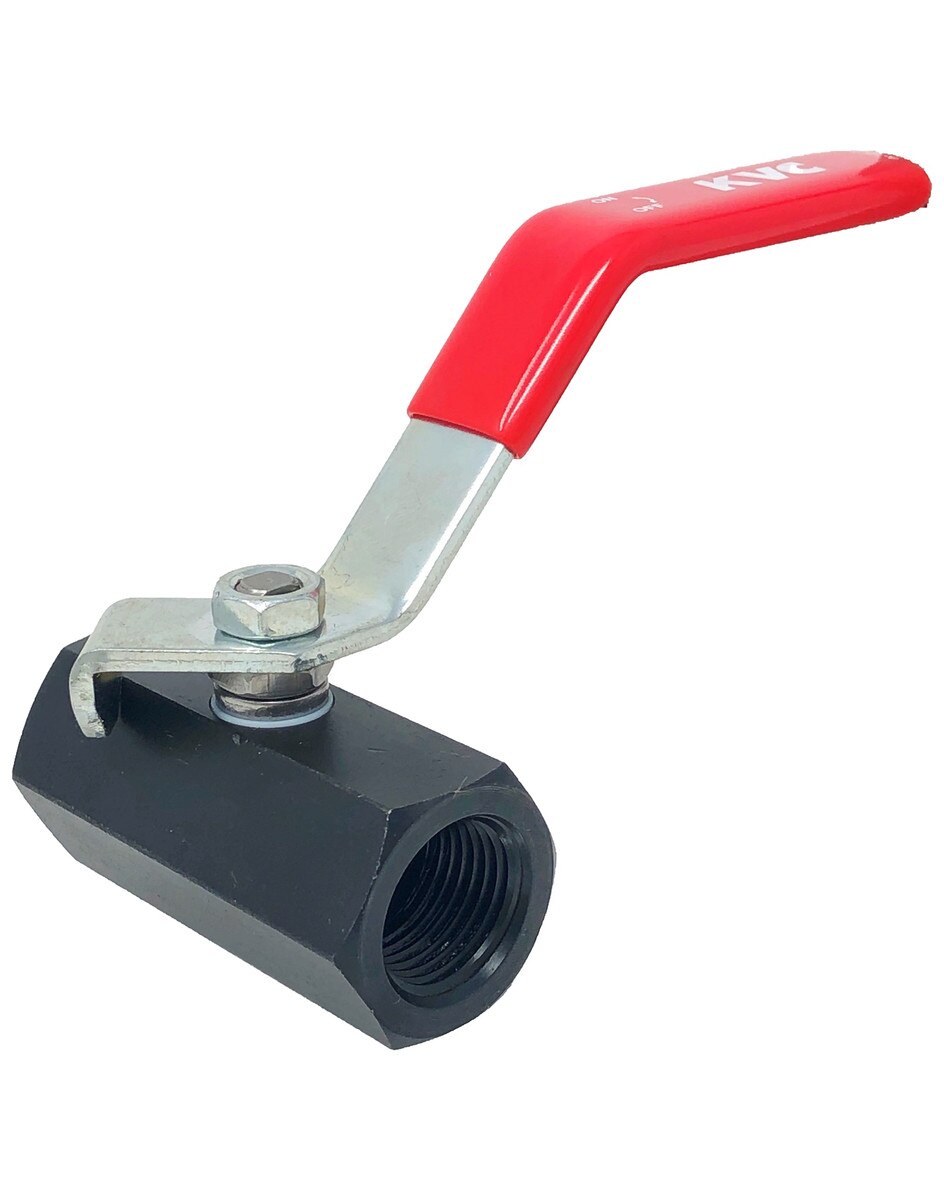

A-122T Series Carbon Steel Ball Valve 2000 WOG One Piece Reduced Port Barstock Body RTFE Seat NPT Threaded Ends NACE Level Handle
Features
- Strengthened Barstock construction secures 2000 PSI working pressure rating. Reinforced TFE seat increases durability.
- NACE Trim complied with NACE MR-01-75.Brass Ball Valve
- Separating packing nut and handle nut secure NO STEM LEAKAGE even when handle is removed.
- Bottom-loaded blow-out proof stem.
- Basic design complied with ANSI B16.34 & EN 12516-1.
- NPT threaded ends complied with ANSI B 1.20.1.
- Rc, Rp & G Threaded ends complied with BS 21/2779, JIS B-0203/0202, DIN 259/2999, ISO 228-1, AS1722.1/1722.2 are upon request.
- Tested according to API 598.
Detailed Product Information (PDF)
