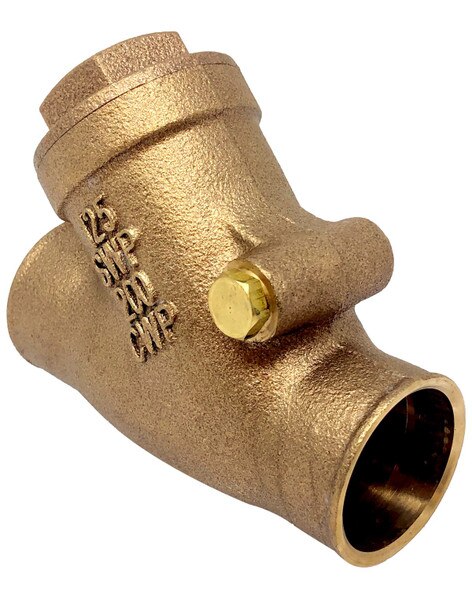

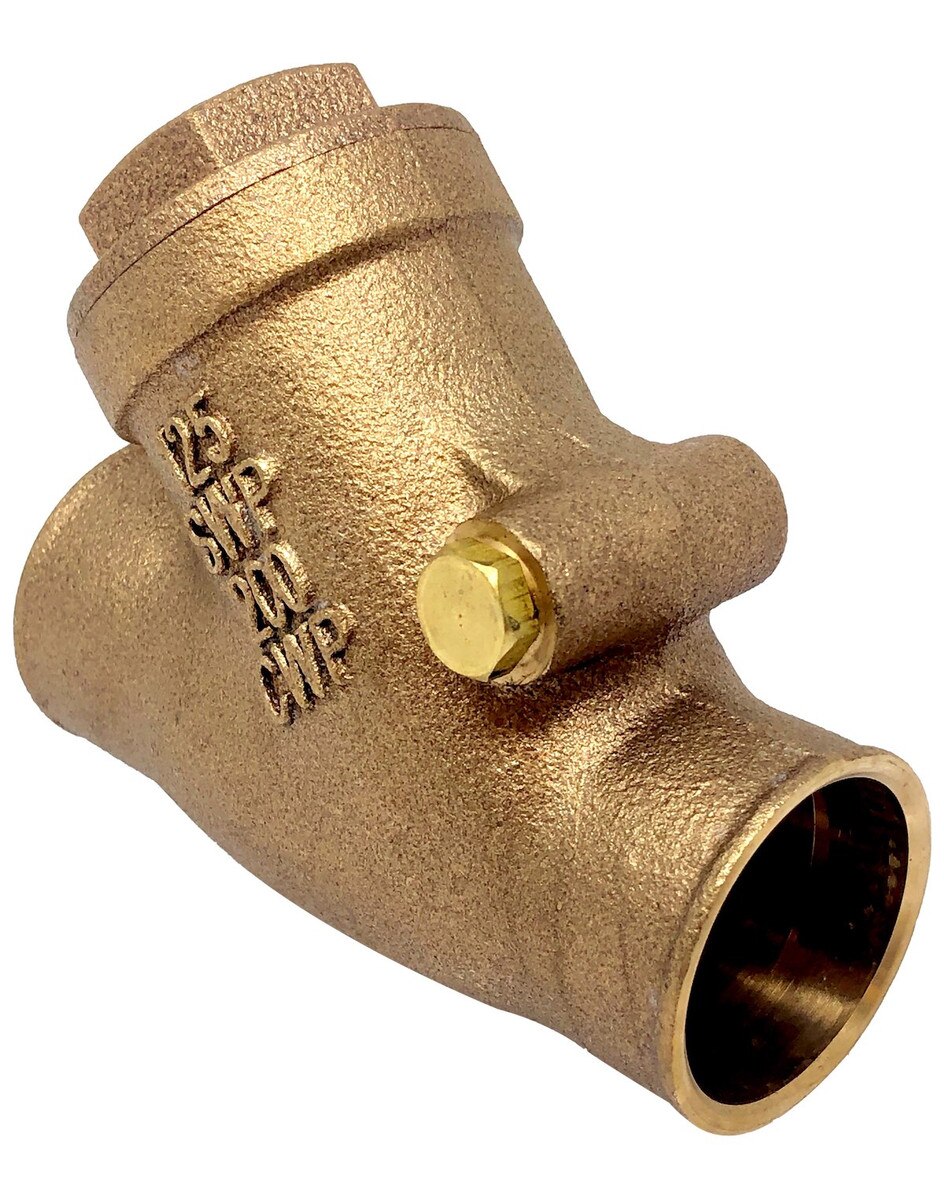

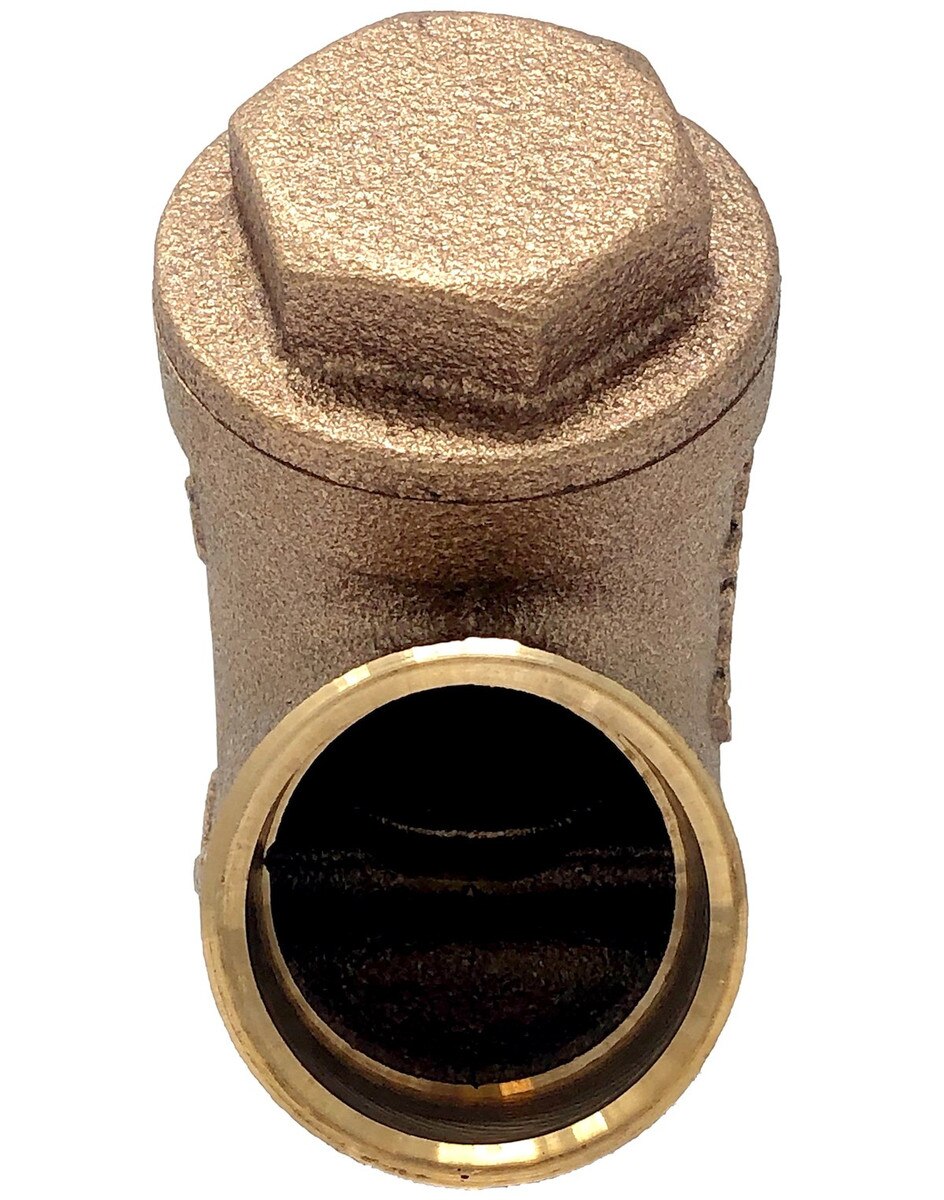

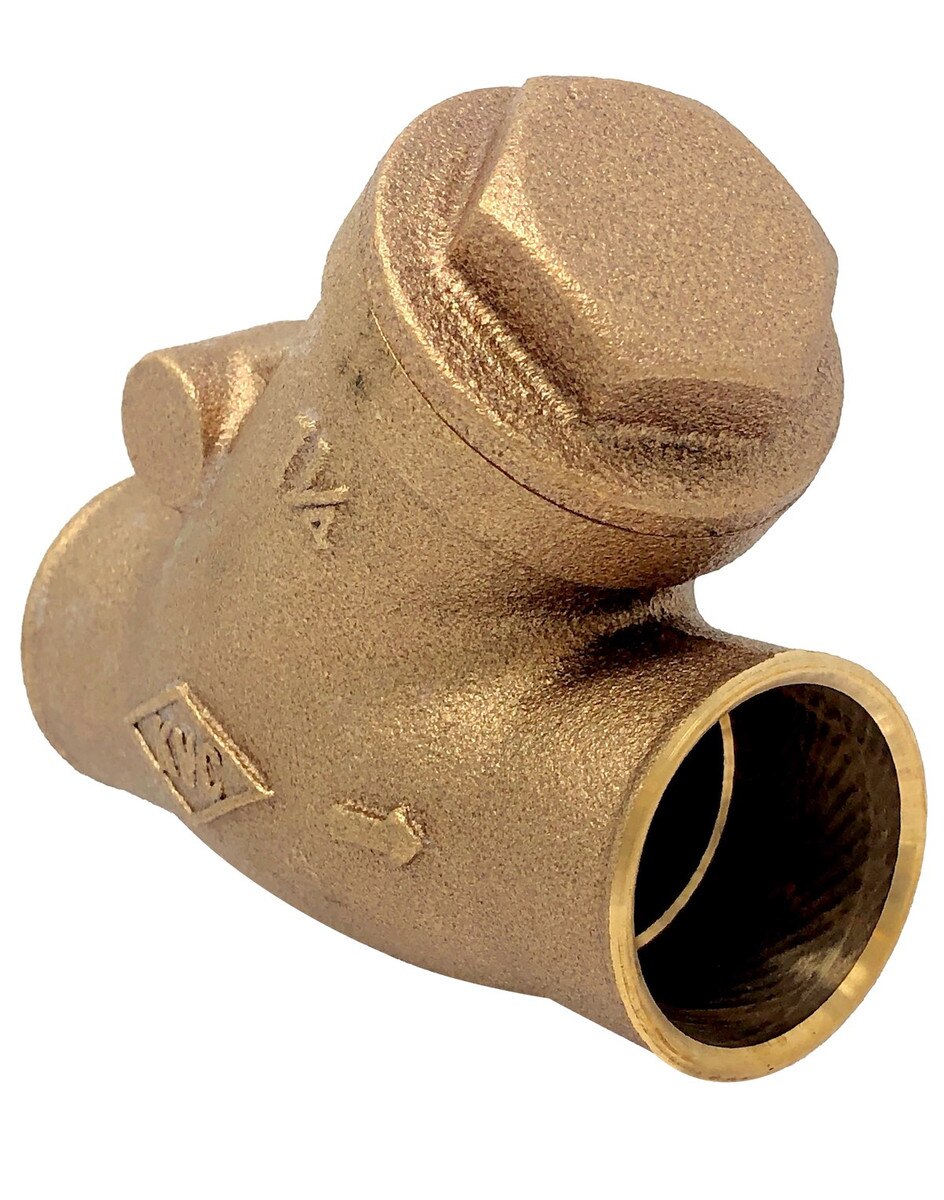

122C Series Bronze Swing Check Valve Class 125 200 WOG Y-Pattern Screw-in Cap Bronze Body & Disc CxC Solder Joint Ends
Features
- Horizontal Swing type, Solder Joint Ends, Screw Cap, Bronze Body, Disc and Bonnet
- Solder Joint Ends: ANSI B16.18
- 200 PSI non Shock - cold water, oil or gas
- 125 PSI Saturated Steam
- Test pressure: Shell (hydro) 300PSI, Seat (hydro) 80PSI
- SS 304 Hinge Pin for 2½”-4"
