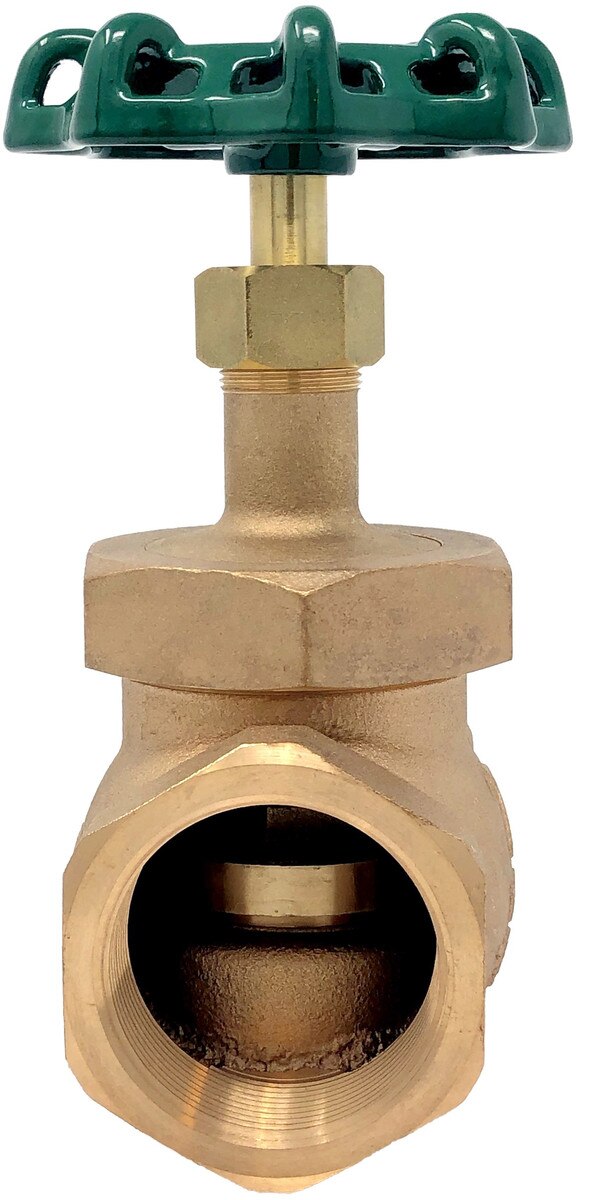

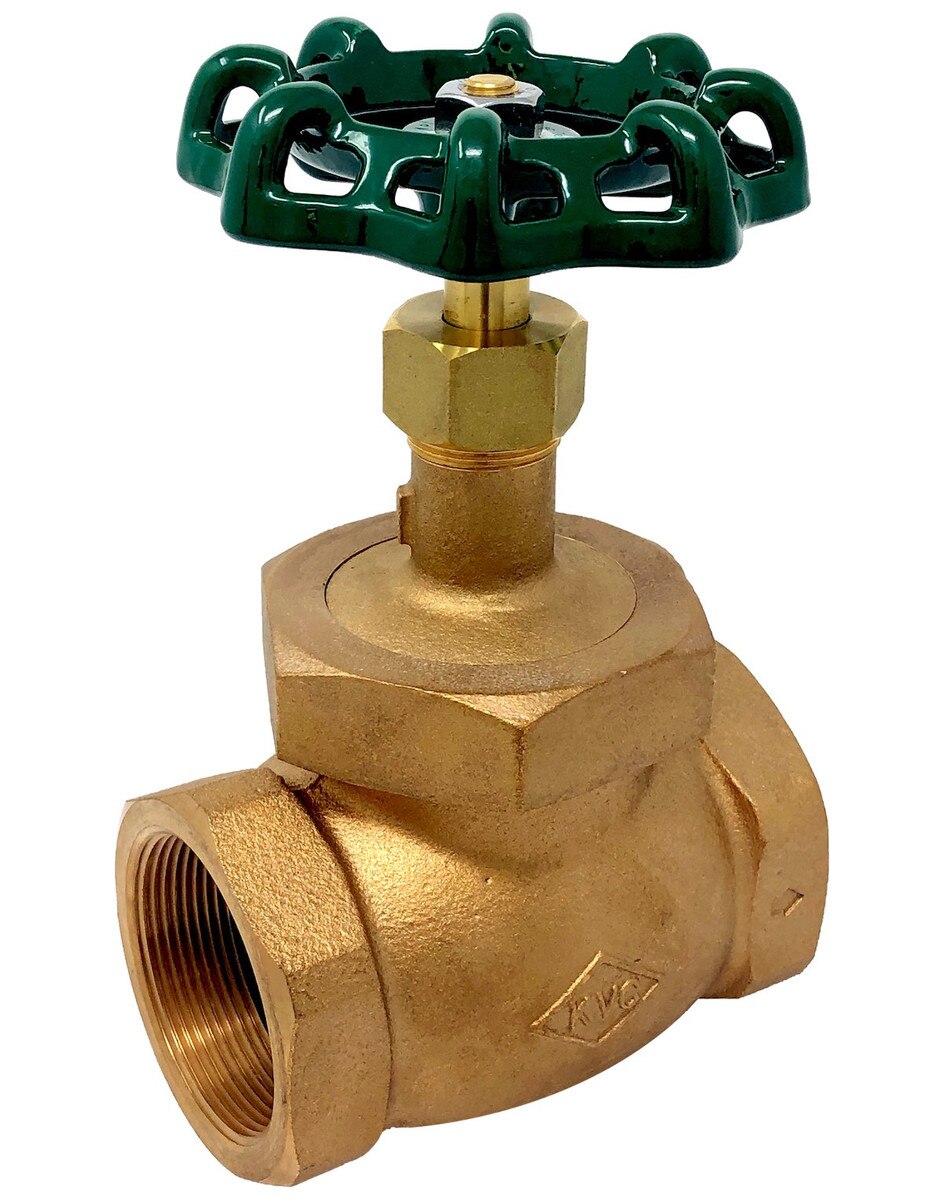

109U Series Bronze Globe Valve Class 150 Union Bonnet PTFE seat Teflon disc NPT Threaded Ends
Features
- Class 150, NPT ends, Union bonnet, B62 Bronze body, Teflon disc.
- Rising stem, indicates open or closed valve
- Union bonnet, leak-free at higher pressure and/or temperature
- Sure-grip Handwheel for tight and easy operation
- Valve is made of ASTM registered material substantiates long-life service
- Valves conform to: MSS SP-80
- Valves conform to: MSS SP-25
- 150 PSI/10.3 Bar Saturated Steam to 366ºF/185º
- 300 PSI/20.7 Bar Non-Shock Cold Working Pressure
- Threaded ends per ANSI B1.20.1
- Union Bonnet
- Renewable PTFE disc
- Integral seats
Detailed Product Information (PDF)
