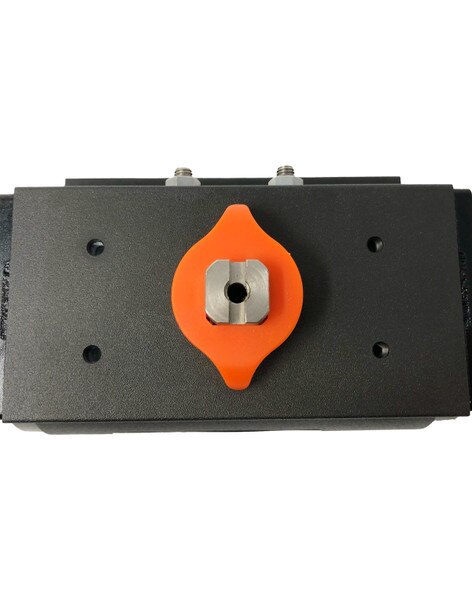

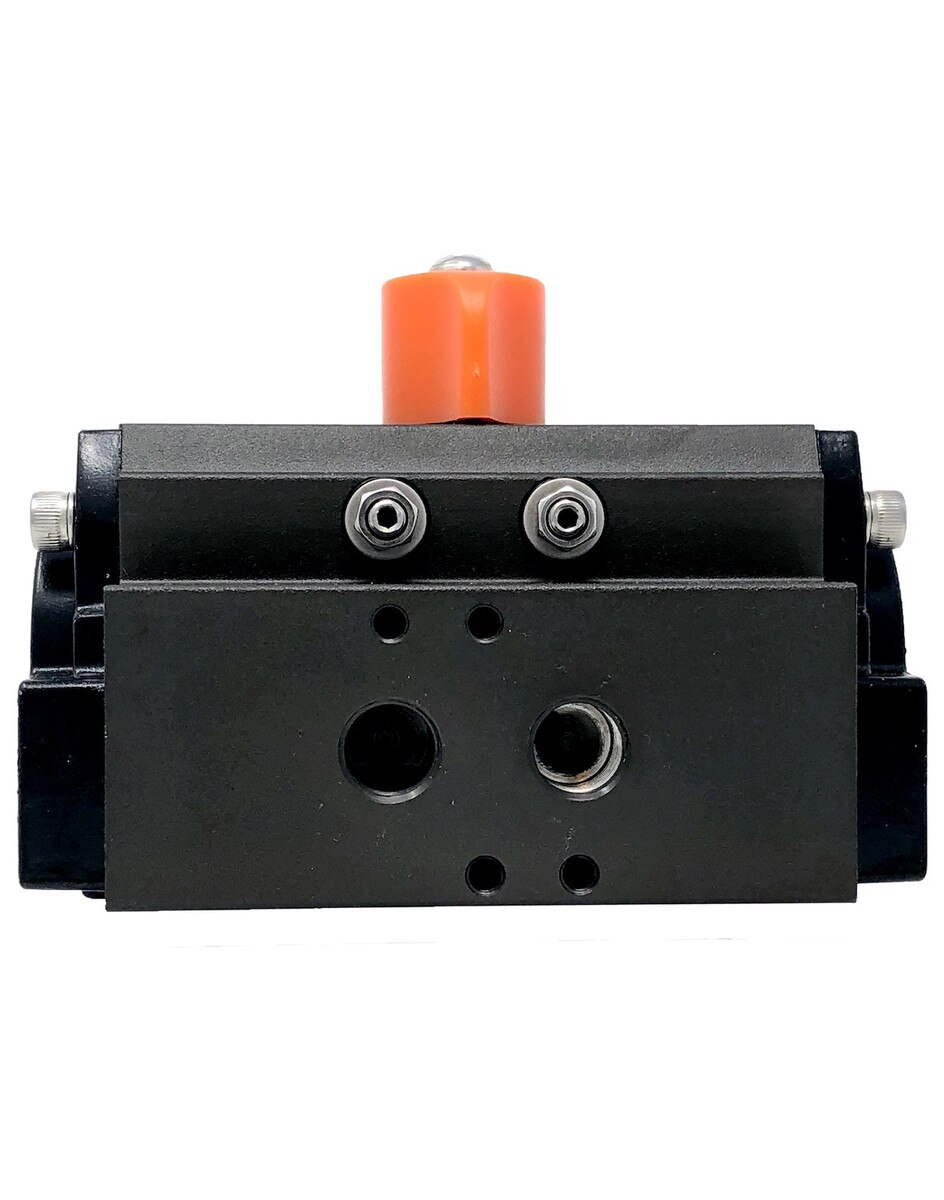

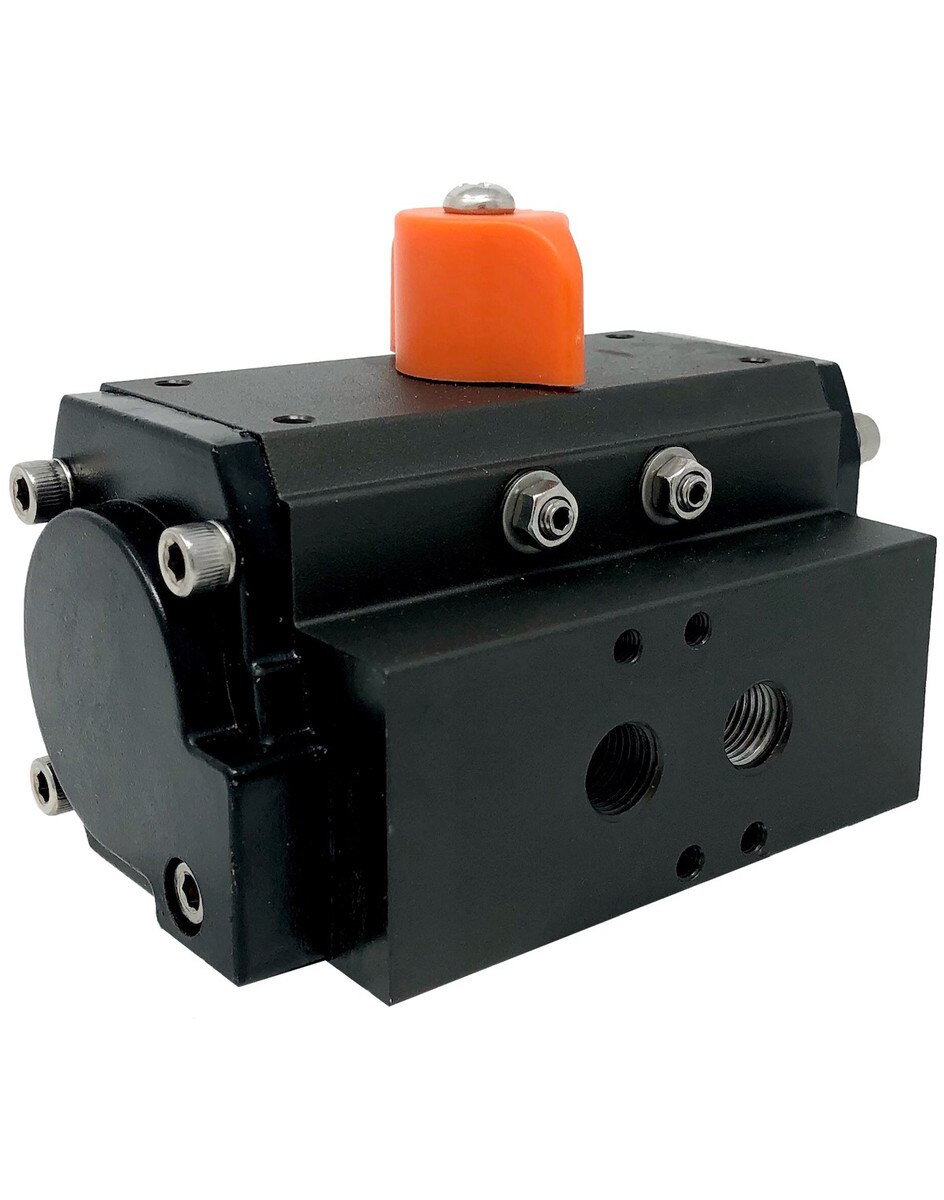

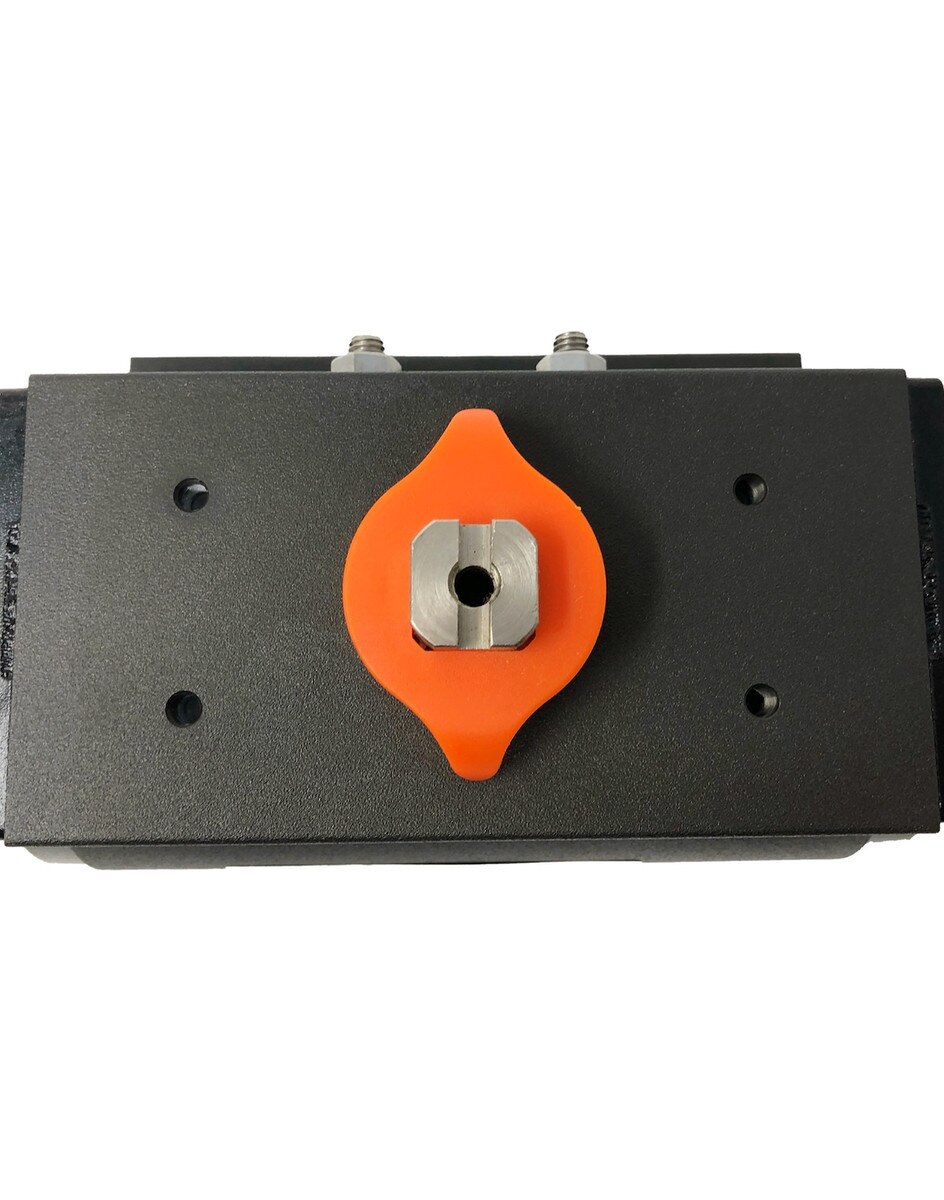

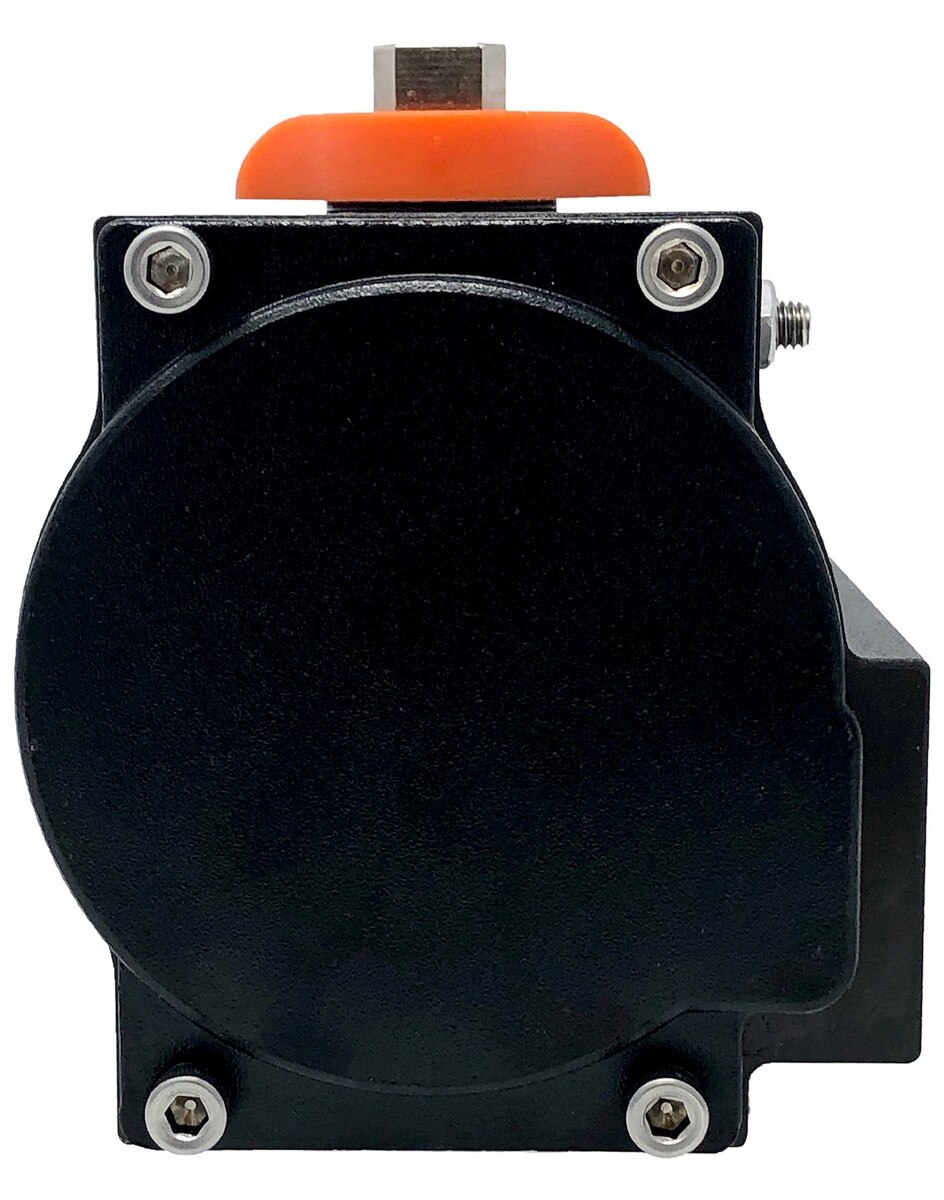

RP-125 Double-Acting Pneumatic Rack & Pinion Actuator ISO 5211 NAMUR Direct Mount
- ISO 5211 mounting interface allows direct actuator mounting without using bracket & coupling.
- Air supply connections & rop shaft comply with VDI/VDE 3845 (NAMUR) standard for good interchangeability.
- Hard and aluminum body & Elcctrolcss nickel coated steel drive-shall give high corrosion-resistance & superior wear-resistance .
- Independent travel stops in both directions offer +/-5” travel adjustment to ensure accurate valve alignment.
- One-piece blowout-proof shaftensures safety, strength, and extended cycle life.
- Extruded aluminum body with precision machined internal surface guarantee low friction, high cycle life and precision piston fit.
- Precision machined gear teeth with extra fine tolerance reduce backlash on the system, ensure excellent tooth engagement, and maximize cycle life.
Detailed Product Information (PDF)
