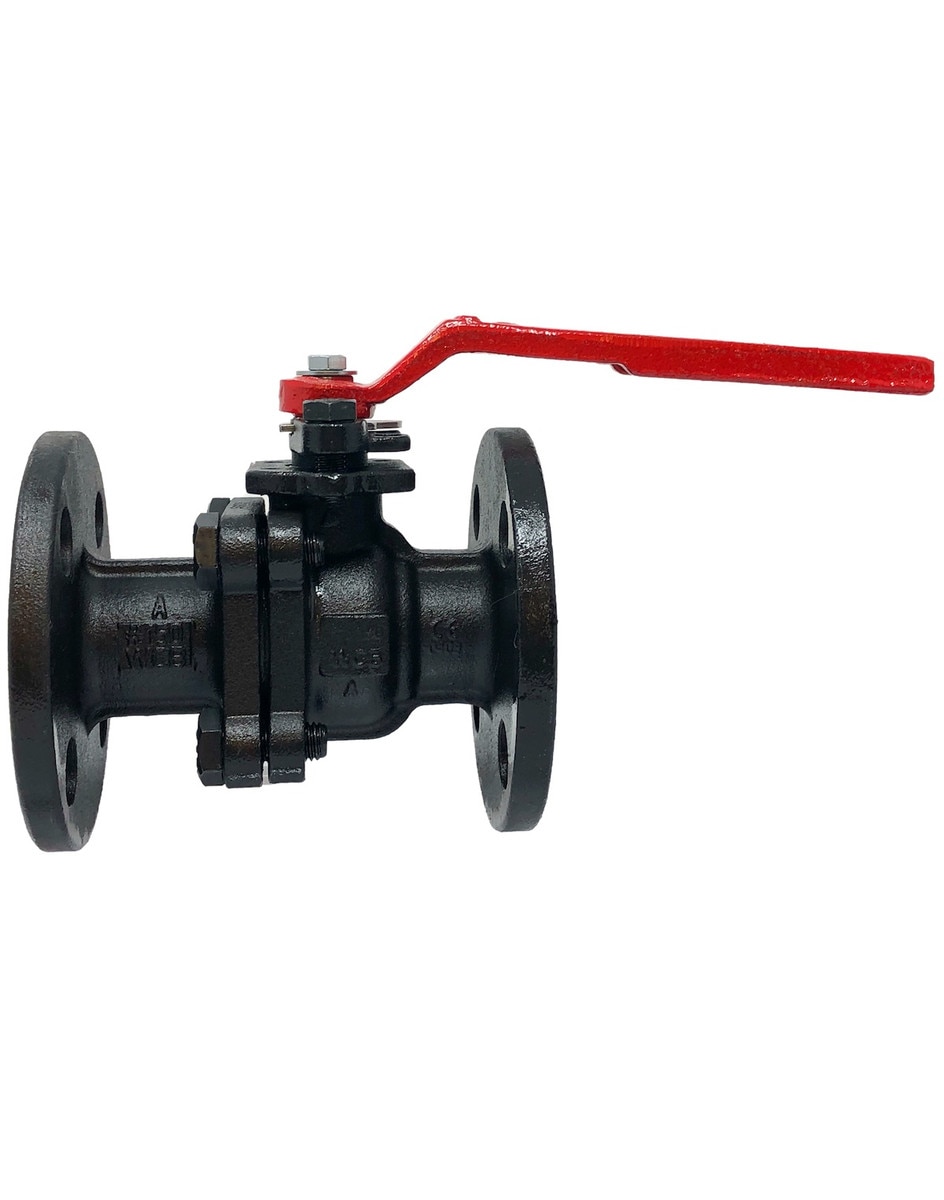

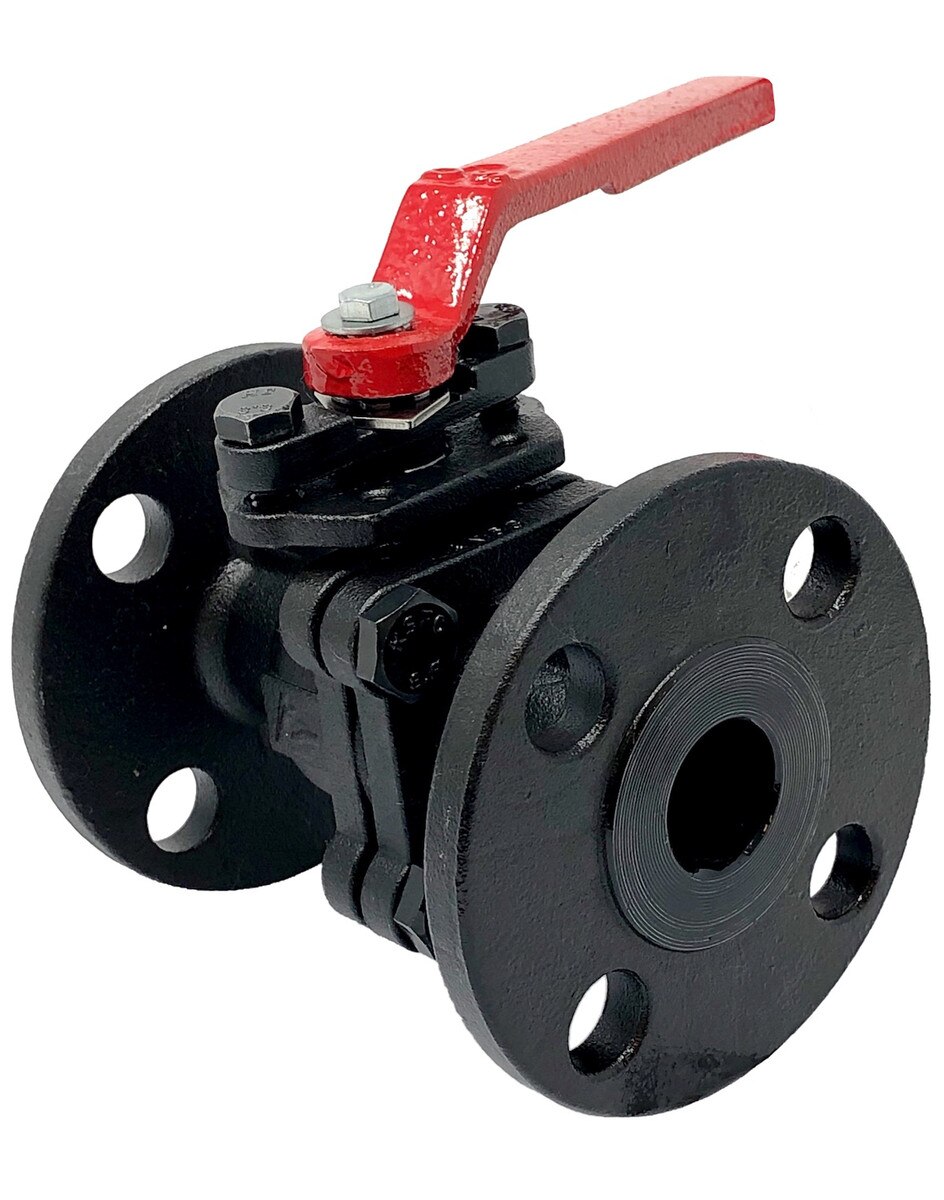

C-235F-F Series Carbon Steel Ball Valve Class 150 Two Piece Full Port WCB Body & Ball PTFE Seats ISO 5211 Mounting Pad Flanged Ends Lever Handle

(0) No Reviews yet
SKU: C-235F-F

This item is IN STOCK

Features

  • Split body design with flanged ends for fast installation, in-line maintenance and rebuilding. Solid ball construction provides structural integrity and minimizes flow turbulence.
  • Body join is designed to prevent excessive compression of valve internals, resulting in consistent and low operating torque.

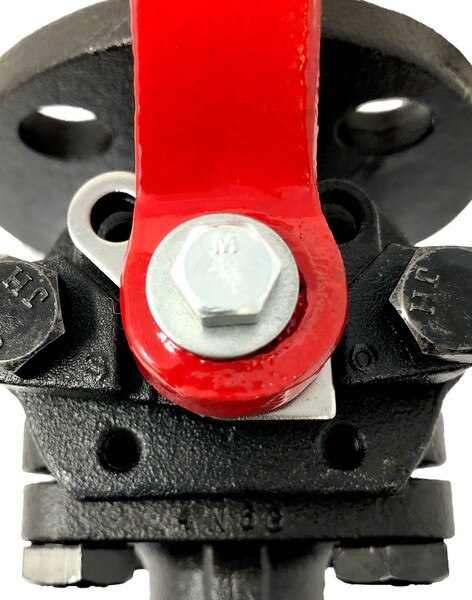

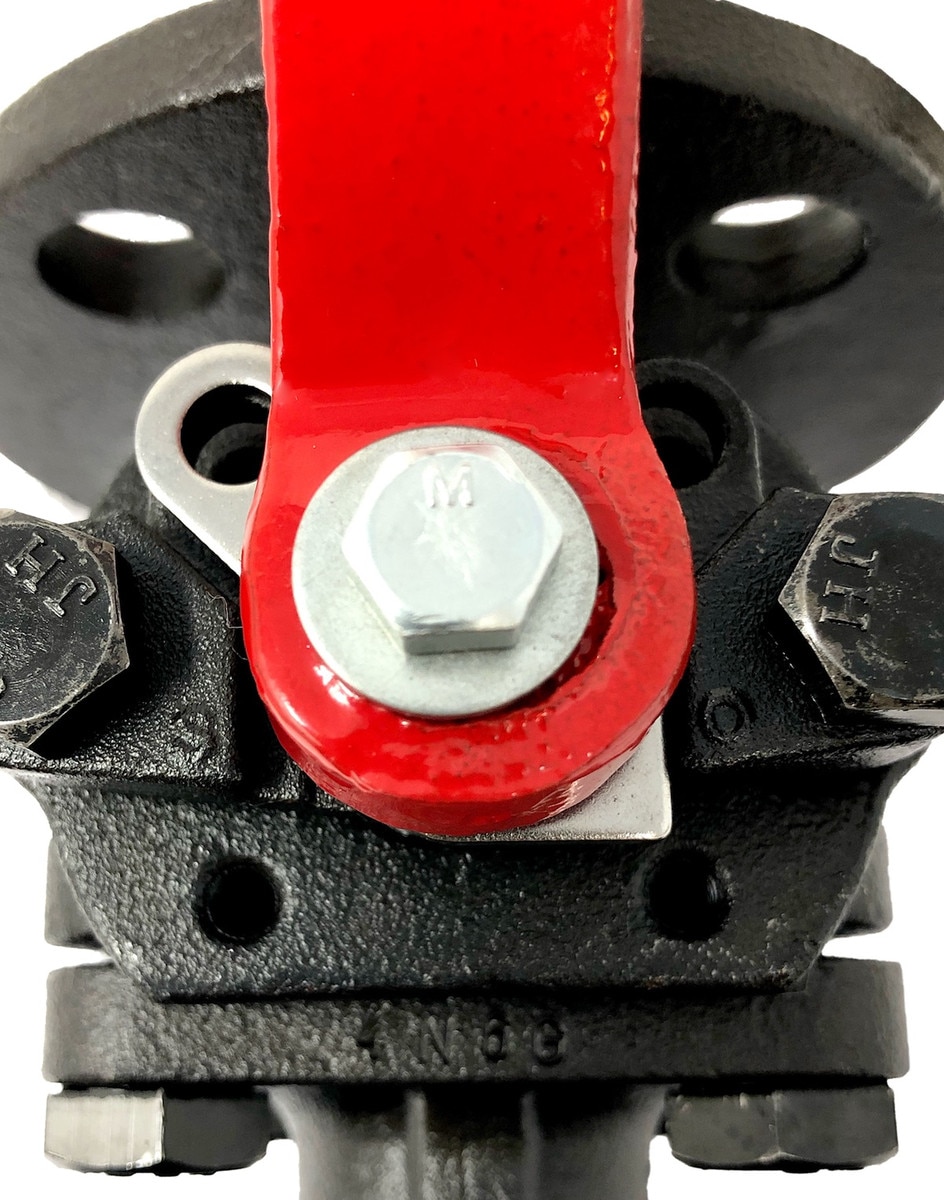

  • Mounting pad complied with ISO 5211 for ease and interchangeability of actuation
  • Bottom-loaded blow-out proof stem.
  • Investment cast body & cap on sizes ½" to 4". Sand cast body & cap on sizes 5" to 10".
  • Basic design complied with ASME/ANSI B16.34
  • Flanged ends complied with ASME/ANSI B16.5
  • Face-to-face dimensions complied with ASME/ANSI B16.10
  • Graphite gasket & stem packing prevent post-fire external leakage.
  • Post-fire metal-to-metal seal prevents internal leakage after fire. Tested according to API 598 & ANSI B 16.34

Detailed Product Information (PDF)
