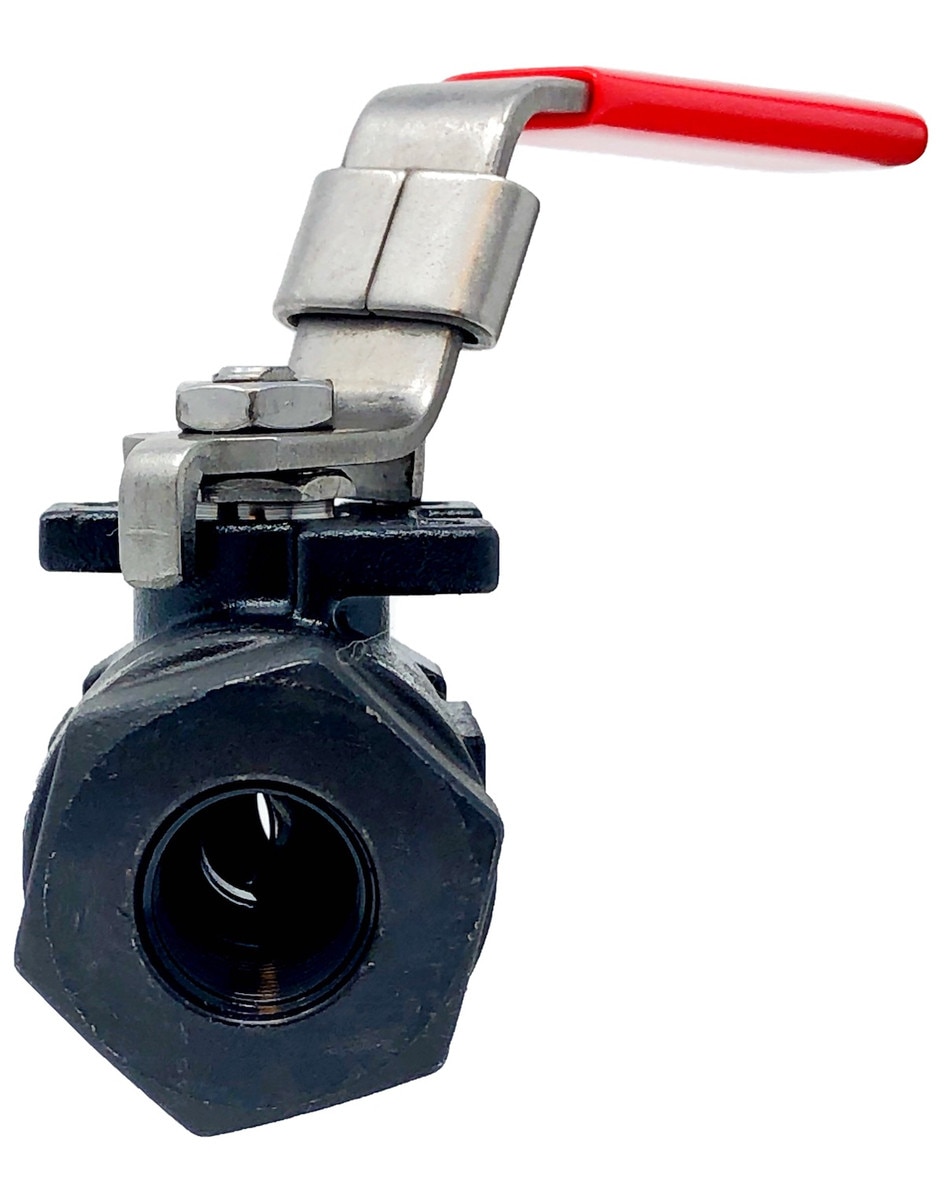

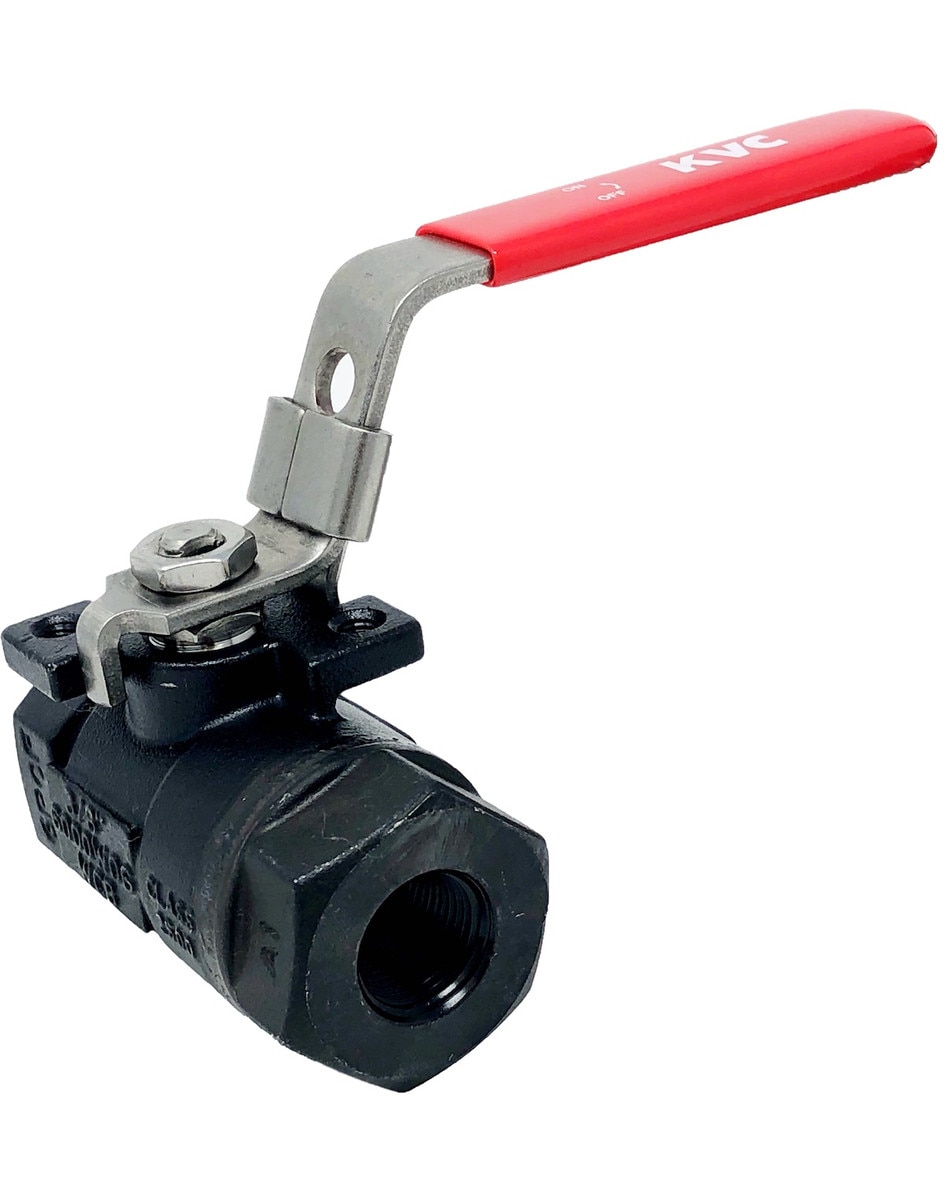

C-206TMLW-F Series Carbon Steel Ball Valve 6000 WOG Seal Welded Two Piece 1/4" ~ 1-1/2" Full Port 2" Reduced Port 316 Stainless Steel Body & Ball Delrin Seat NPT Threaded Ends ISO 5211 Mounting Pad NACE MR-01-75 Locking Lever Handle Fire Safe

(0) No Reviews yet
SKU: C-206TMLW-F

This item is IN STOCK

Features

  • Strengthened construction secures 6000 psi working pressure rating. Enlarged bottom-loaded blow-out proof stem.
  • Gasket is placed ahead of the body cap threads, providing a tight seal and protection of threads from flow media.
  • Vented ball equalizes pressure between the body cavity and the flow steam to prevent seat damage due to thermal cycling.
  • Basic design complied with ANSI B16.34 & EN 12516-1.
  • NPT threaded ends complied with ANSI B 1.20.1.
  • Rc, Rp & G Threaded ends complied with BS 21/2779, JIS B-0203/0202, DIN 259/2999, ISO 228-1, AS1722.1/1722.2 are upon request.
  • Graphite gasket & stem packing prevent post-fire external leakage.
  • Post-fire metal to metal seal prevents internal leakage after fire.
  • Tested according to API 598.

Detailed Product Information (PDF)
