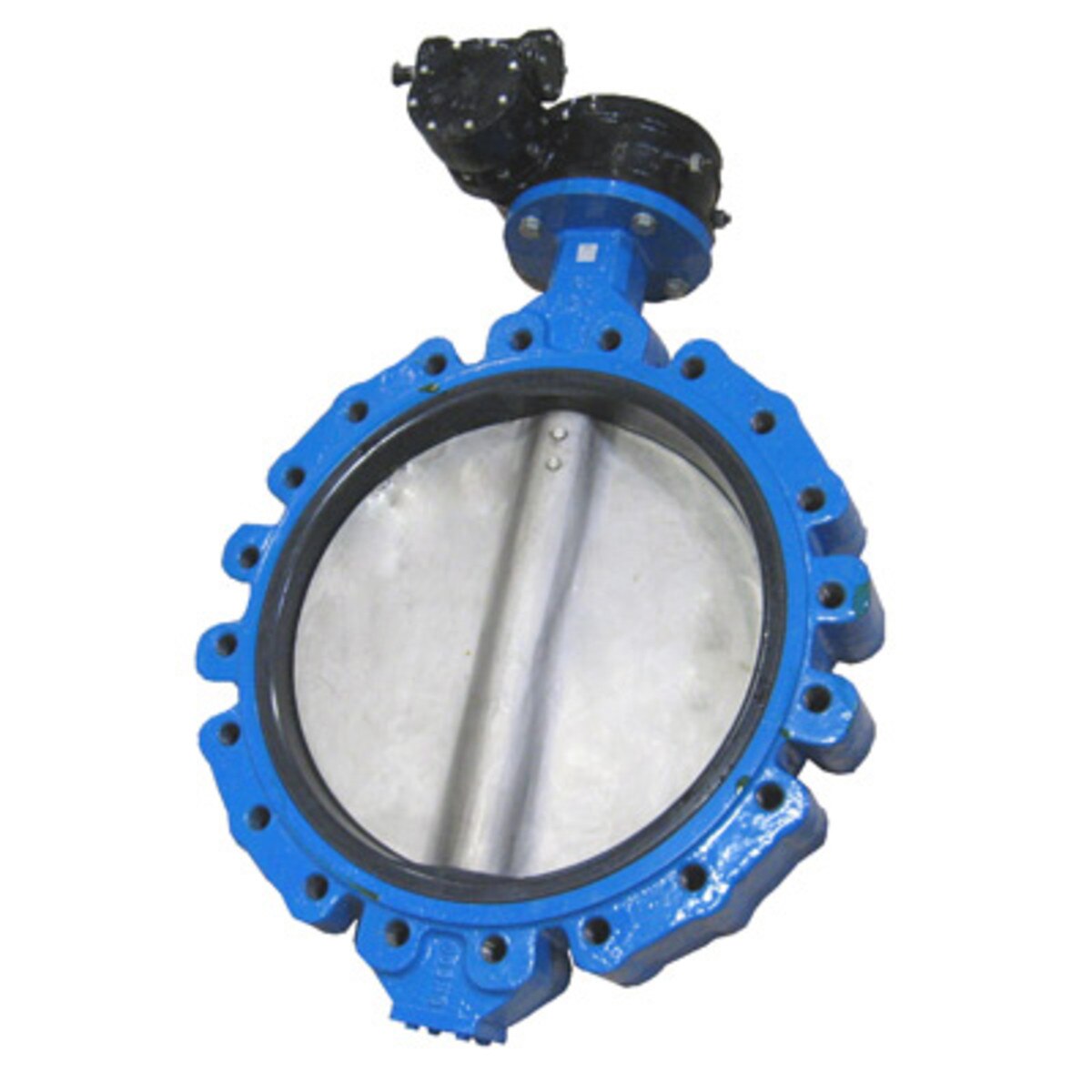

BL-2000-11DBG Series Lug Butterfly Valve 150 WOG Ductile Iron Body 410 Stainless Steel Shaft BUNA Seat Di NP Disc Gear Operator

• Valves meet MSS-SP67 & API 609
• Flange drilling to: ANSI B16.1 Class 125/150
• Testing to: API 598

• Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
• Disc: 316 Stainless Steel.
• Body: 316 Stainless Steel.

* Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.

* Caution: All 2000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.
