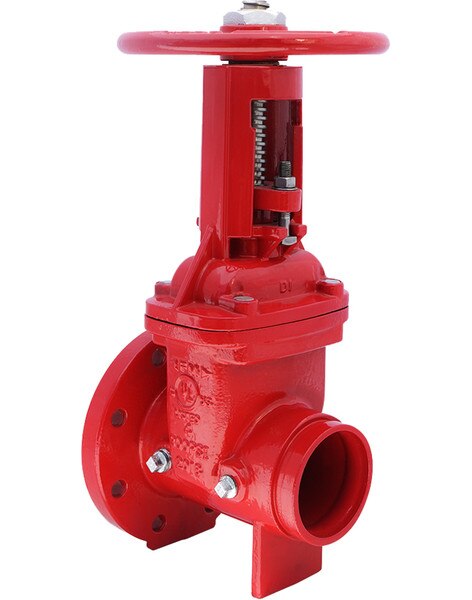

AOSY3-FG Series OS&Y Gate Valve 300PSI FxG End UL/FM
Features
- Connections: Flanged x Grooved Ends (ANSI B16.1 Class 125 x AWWA C606)
- Sizes: 2-1/2”, 3”, 4”, 6”, 8”, 10”, 12”
- Approvals: UL, ULC, and FM
- Max. Working Pressure: 300 PSI
- Max. Test Pressure: 600 PSI
- Max. Working Temperature: 180°F (82°C)
- Complies with AWWA C515
- NPT Plug on Body
- Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550
