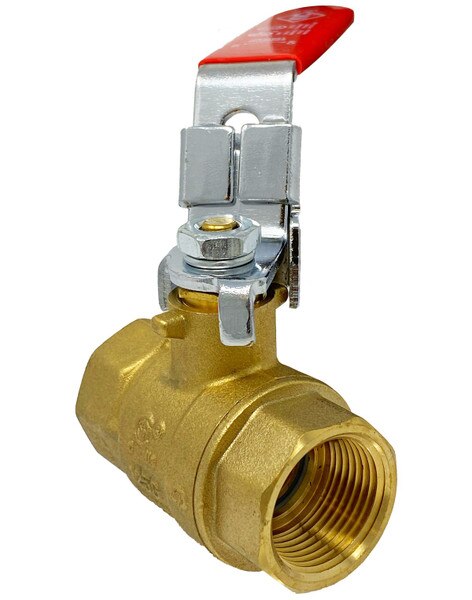

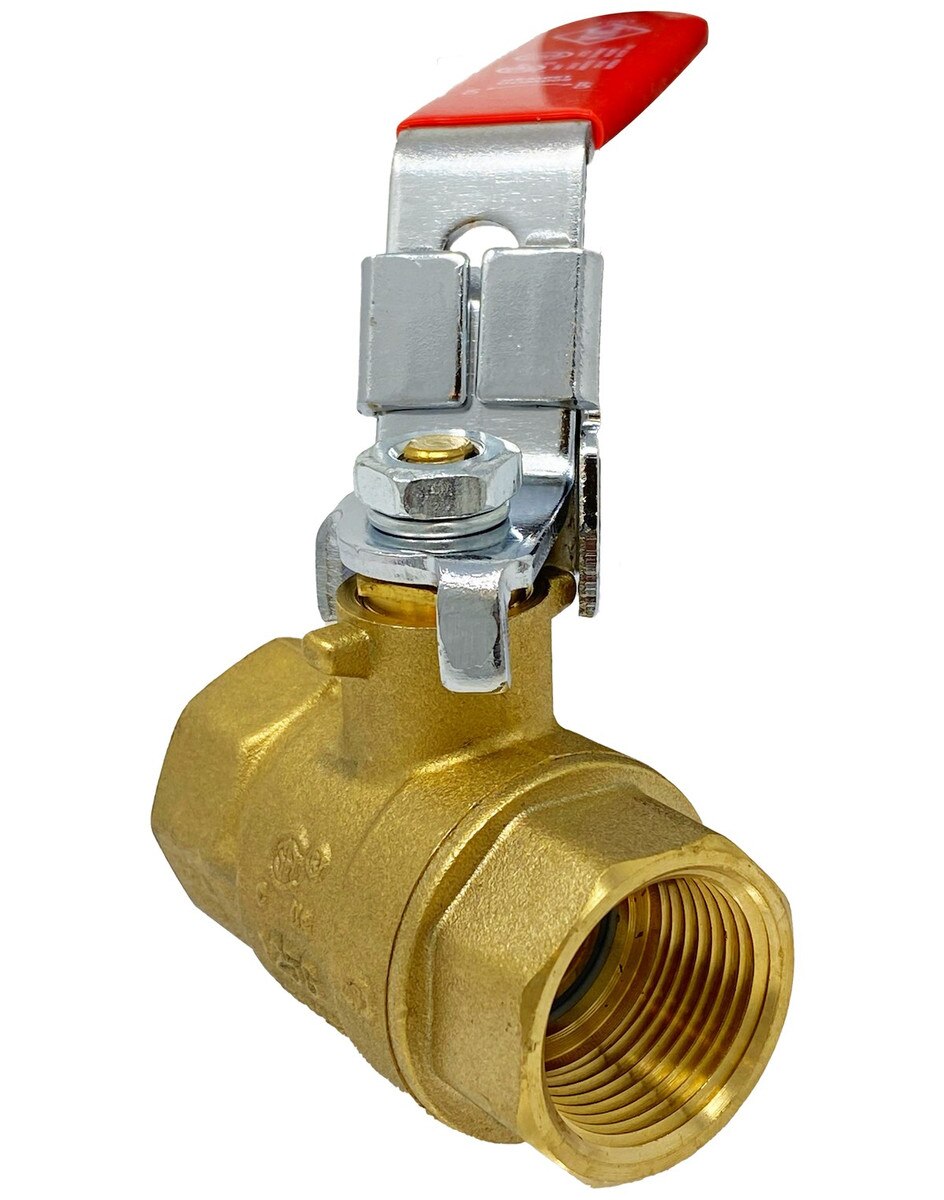

100T-L Series Brass Ball Valve 600 WOG Full Port NPT Threaded Ends Locking Handle CSA/UL/FM
Features
- Thread Conform ANSI B1.20.1
- Forged Brass Body
- Blow Out Proof Stem Design
- Packing Nut, O-RING & Packing On The Stem Seal
- Brass/Chrome Plated Or Stainless Steel Ball
- Handle With Vinyl Grip
Performance Rating:
- 600 psi (WOG) 150 psi (WSP) Service
- Temperature Range : -40° F to 300° F
Detailed Product Information (PDF)
